H76H Double disc check valve

Drawing
Catalogue
Inquiry

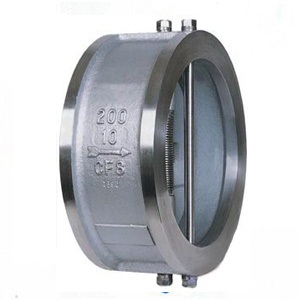

H76H Double disc check valve Product introduction

H76H Double disc check valve is used for purified pipelines and industrial, environmental protection, water treatment, water supply and drainage pipelines in high-rise buildings to prevent reverse flow of media. H76H Double disc check valve adopts clamping type, butterfly plate is two semicircles, and adopts spring force reset. The sealing surface can be surfacing and welding wear-resisting material or rubber lining for the body. It has a wide range of use and reliable sealing.

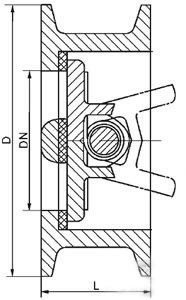

H76H Double disc check valve dimension

DN	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800	900	1000	1200
L	43	46	64	64	70	76	89	114	114	127	140	152	152	178	229	241	241	300	360
D	100	120	135	155	185	185	265	320	368	428	482	532	585	685	800	905	1005	1115	1325
