H41W Stainless steel check valve

H41W Stainless steel check valveH41W Stainless steel check valve
H41W Stainless steel check valve

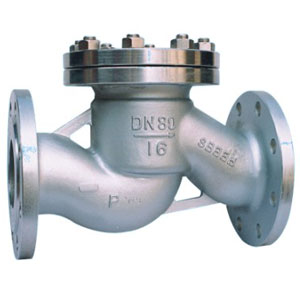

H41W Stainless steel check valve Product introduction

H41W Stainless steel check valve

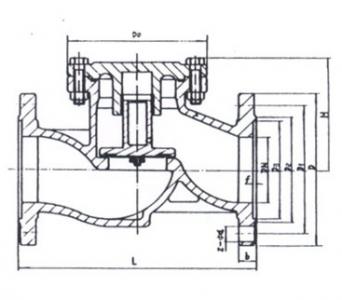

H41W Stainless steel check valve Main dimension


PN
DN Dimension
L D D 1 D 2 D 6 b f f 1 Z-φd H
1.6MPa 40 200 145 110 85 - 16 2 - 4-18 95
50 230 160 125 100 - 16 2 - 4-18 105
65 290 180 140 120 - 18 2 - 4-18 120
80 310 195 165 135 - 20 3 - 8-18 130
100 350 215 180 155 - 20 3 - 8-18 140
125 400 245 210 185 - 22 3 - 8-12 155
150 480 280 240 210 - 24 3 - 8-23 180
200 600 335 295 265 - 26 3 - 12-23 215

H41W Stainless steel check valve Product order instruction




H41W Stainless steel check valve Related Products

Previous: Slag discharge check valve

Next:HC41X Flange silent check valve
