H14W-16P Screw stainless steel check valve

H14W-16P Screw stainless steel check valve Product introduction

H14W-16P Screw stainless steel check valve manufacturer, factory and supplier, H14W-16P Screw stainless steel check valve is lift type structure, BS, NPT threaded end with stainless steel for water, steam, oil, gas medium in industrial system.Size is from DN15 to DN100.

H14W-16P Screw stainless steel check valve specification:

Connection type: Threaded end

Materials: Stainless steel CF8, CF8M, CF3, CF3M, etc

Sizes:DN15~DN100, 1/2" ~4"

Working Pressure: PN10-PN40, 150LB

Design standard: ANSI, DIN, JIS, GB etc.

Inspection and Test: API598

Flange end : ASME B16.5 (for NPS≤24); AMSE B16.47 series B

Pressure/temperature rating: ASME B16.34
Temperature Range: ≤ 425 degree

Suitable Medium: Water, oil, steam, acetic acid and other corrosive liquids.

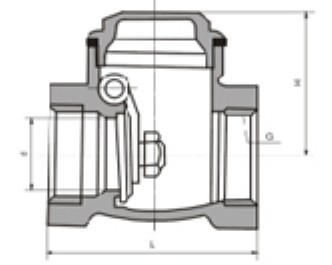

H14W-16P Screw stainless steel check valve Main dimension

SIZE	1/2"	3/4"	1"	11/4"	11/2"	2"	21/2"	3"
A	15	20	25	32	40	50	65	80
H	42	51	60	67	75	81	93	104
L	65	80	90	105	120	140	180	200

H14W-16P Screw stainless steel check valve Product order instruction
