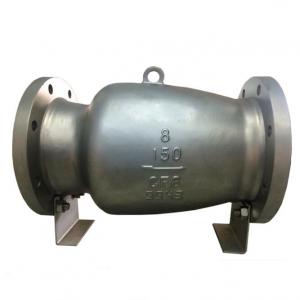

Axial Nozzle Check Valve

Axial Nozzle Check Valve Product introduction

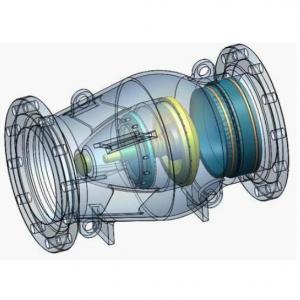

　Axial Nozzle Check Valve revents reverse flow by a slowly sealing before the pump stops. Axial Nozzle Check Valve short pattern design reduces the closing time avoiding water hammer. The seat can be metal or soft seated and its disc' conical surface design provides a tight sealing.

Axial Nozzle Check Valve ensures an excellent dynamic performance minimizing vibrations and noise.

Axial Nozzle Check Valve Product Range:

Body material: carbon steel, stainless steel, alloy steel,bronze

Nominal diameter:1.5"~48"(DN40~DN1200)

End Connection: RF,RTJ, BW

Pressure range: Class150~2500(PN16~PN420)

Working temperature:-196℃~+560℃

Axial Nozzle Check Valve Specification:

Design and manufacture:API594,API 6D,JB/TB8937;
Face to face and end to end:API594,API6D,DIN3202,JB/T8937;
Pressure-temperature rating:ASME B16.34,DIN2410,GB/T9124,HG20625,SH3406,JB/T74;
Inspection and test: API598,JB/T9092;
Pipe flange: JB/T74~90,JB/T9112-9124,HG20592~20635,SH3406,ASME B16.5,DIN2543~2548,GB/T13402,API605,ASME B16.47.
