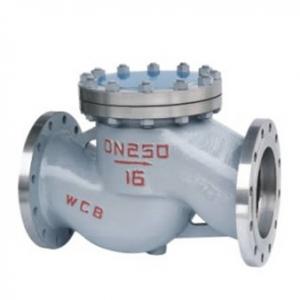

H41H Lift type check valve

H41H Lift type check valve Product introduction

H41H Lift type check valve manufacturer, factory and supplier, H41H Lift type check valve is lift type structure, flanged end with carbon steel for water, steam, oil, gas medium in industrial system.Size is from DN15 to DN600.

H41H Lift type check valve specification:

Connection type: Flange end

Materials: Carbon steel WCB,Stainless steel CF8, CF8M, CF3, CF3M, etc

Sizes:DN15~DN600, 1/2" ~24"

Working Pressure: PN10-PN100, 150LB~600LB

Design standard: ANSI, DIN, JIS, GB etc.

Inspection and Test: API598

Flange end : ASME B16.5 (for NPS≤24); AMSE B16.47 series B

Pressure/temperature rating: ASME B16.34
Temperature Range: ≤ 425 degree

Suitable Medium: Water, oil, steam, acetic acid and other corrosive liquids.

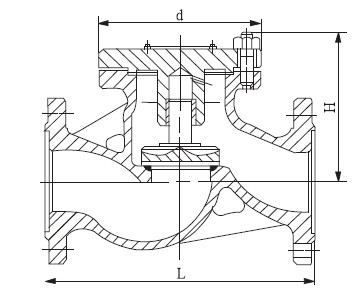

H41H Lift type check valve Main dimension

1.6MPa	DN	L	D	D1	D2	b	n-Φd	H	W(kg)
RF H41H H41Y H41W H41N 16C 16P 16R	15	130	95	65	45	14	4-14	58	2.0
	20	150	105	75	55	14	4-14	63	2.7
	25	160	115	85	65	14	4-14	71	3.5
	32	180	135	100	78	16	4-18	84	5.4
	40	200	145	110	85	16	4-18	96	6.5
	50	230	160	125	100	16	4-18	115	9.1
	65	290	180	145	120	18	4-18	145	14
	80	310	195	160	135	20	8-18	156	25
	100	350	215	180	155	20	8-18	170	40
	125	400	245	210	185	22	8-18	201	56
	150	480	280	240	210	24	8-23	238	90
2.5MPa	15	130	95	65	45	16	4-14	60	4
凸面法兰 RF H41H H41Y H41W H41N 25 25P 25R	20	150	105	75	55	16	4-14	64	5
	25	160	115	85	65	16	4-14	68	6
	32	180	135	100	78	18	4-18	79	9
	40	200	145	110	85	18	4-18	98	12
	50	230	160	125	100	20	4-18	110	16
	65	290	180	145	120	22	8-18	160	24
	80	310	195	160	135	22	8-18	170	31
	100	350	230	190	160	24	8-23	195	45
	125	400	270	220	188	28	8-25	225	68
	150	480	300	250	210	30	8-25	255	100

PN 4.0MPa～10.0MPa

4.0MPa	DN	L	D	D1	D2	b	n-d	H	重量
MFM H41H H41Y H41W H41N 40 40P 40R 40I	15	130	95	65	40	16	4-14	100	4
	20	150	105	75	51	16	4-14	105	5
	25	160	115	85	58	16	4-14	120	6
	32	180	135	100	66	18	4-18	130	9
	40	200	145	110	76	18	4-18	135	12
	50	230	160	125	88	20	4-18	149	15
	65	290	180	145	110	22	8-18	164	18
	80	310	195	160	121	22	8-18	169	25
	100	350	230	190	150	24	8-23	194	35
	125	400	270	220	176	28	8-25	225	65
	150	480	300	250	204	30	8-25	255	100
6.4MPa	15	210	105	75	40	18	4-14	100	7
MFM H41H H41Y H41W H41N 64 64P 64R 64I	20	230	125	90	51	20	4-18	110	11
	25	230	135	100	58	22	4-18	125	13
	32	260	150	110	66	24	4-23	152	14
	40	260	165	125	76	24	4-23	168	20
	50	300	175	135	88	26	4-23	170	23
	65	340	200	160	110	28	8-23	188	37
	80	380	210	170	121	30	8-23	205	46
	100	430	250	200	150	32	8-25	230	68
	125	500	295	240	176	36	8-30	245	93
	150	550	340	280	204	38	8-34	265	120
10.0MPa	15	210	105	75	40	20	4-14	100	7
MFM H41H H41Y H41W H41N 100 100P 100R 100I	20	230	125	90	51	22	4-18	110	11
	25	230	135	100	58	24	4-18	125	13
	32	260	150	110	66	24	4-23	140	14
	40	260	165	125	76	26	4-23	168	25
	50	300	195	145	88	28	4-25	170	28
	65	340	200	170	110	32	8-25	188	42
	80	380	230	180	121	34	8-25	205	65
	100	430	265	210	150	38	8-30	230	95
	125	500	310	250	176	42	8-34	245	115
	150	550	350	290	204	46	12-34	265	142
160 160P 160R 160I	32	260	165	115	85	30	4-25	170
	40	260	175	125	92	32	4-27	190
	50	300	215	165	132	36	8-25	300
	65	340	245	190	152	44	8-30	300
	80	380	260	205	168	46	8-30	370
	100	430	300	240	200	48	8-34	410

H41H Lift type check valve Product order instruction
