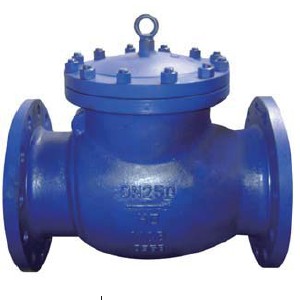

H44X Swing Rubber disc check valve Product introduction

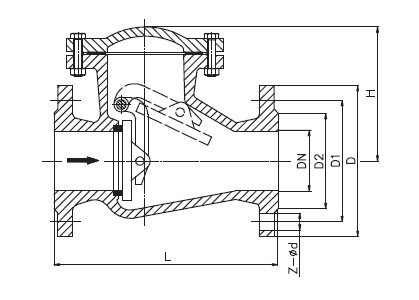

H44X Swing Rubber disc check valve Main dimension

DN	L	H
40	165	165
50	203	165
65	216	185
80	241	200
100	292	220
125	330	280
150	356	285
200	495	340
250	622	395
300	698	445
350	787	505
400	914	565
450	978	615
500	978	670
600	1295	780

H44X Swing Rubber disc check valve Product order instruction
