H76X Wafer double disc check valve

H76X Wafer double disc check valveH76X Wafer double disc check valve
H76X Wafer double disc check valve

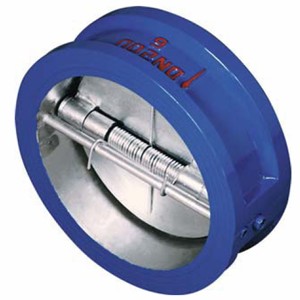

H76X Wafer double disc check valve Product introduction

H76X Wafer double disc check valve manufacturer, factory and supplier. H76X Wafer double disc check valve is wafer type, spring loaded, doubledisc design, H76X Wafer double disc check valve mainly composed of body, disc(valve stem), spring and etc. The short closing stroke of disc and function of spring may strengthen closing effect and reduce the sound of water hammer  and slamming .

H76X Wafer double disc check valve material
1) Body and disc: Brass, carbon steel, stainless steel, Hascrome
2) Stem: Stainless steel
3) Torsion spring: Stainless steel
4) Seal surface: Buna-n rubber, stainless steel, gathered four fluorine
Ethylene, and nylon plastics.

H76X Wafer double disc check valve Specification:
Medium applicable  Water, Oil etc.
Main material Cast iron, Ductile ironI, WCB, WCC, SS304, SS316, CF8 etc
Temperature applicable ≤80ºC
Nominal Pressure PN1.0--4.0Mpa  or Class150
Nominal Diameter DN40-DN1200
Flange Dimension ASME B16.5, BS4504, ISO2531, ISO7005 and other standards conforming to the requirements
Face to Face Length API594, BS5155, ISO5752, DIN3352 or others.

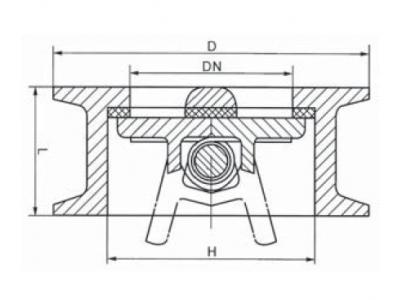

H76X Wafer double disc check valve Main dimension

DN
50
65
80
100
125
150
200
250
300
350
400
450
500
600
L
PN1.01.62.5
60
67
73
73
83
98
127
146
181
184
198
203
219
222
PN4.0
60
67
73
73
83
98
127
146
181
222
231
/
/
/
D
PN1.0
107
127
142
162
192
218
273
328
378
438
489
539
594
695
PN1.6
107
127
142
162
192
218
273
328
378
444
495
555
617
734
PN2.5
107
127
142
168
194
224
284
340
400
458
514
/
/
/
PN4.0
107
127
142
168
194
224
290
352
417
474
546
/
/
/



H76X Wafer double disc check valve Product order instruction
