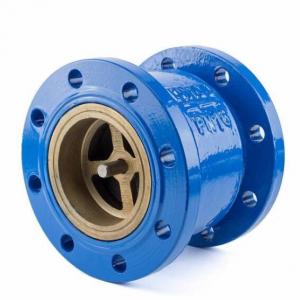

HC41X Low noise check valve

HC41X Low noise check valveHC41X Low noise check valve
HC41X Low noise check valve

HC41X Low noise check valve Product introduction

HC41X Low noise check valvis used the flow of media to open & close disc to prevent the reverse flow in pipeline, protecting pumps, motors and other pipeline equipment from being damaged by pressure surges. HC41X Low noise check valve is used for preventing the back-going of medium in pipelines and equipments, and the pressure of medium will bring the result of opening and closing automatically. When the medium is back-going, valve disc will automatically close to avoid accidents.

HC41X Low noise check valve specification:
Pressure and Temperature ratings:

Working Pressure
10 bar/16 bar/25 bar
Testing Pressure
Shell: 1.5 times rated pressure,
Seat: 1.1 times rated pressure.
Working Temperature
-10°C to 80°C (NBR)
-10°C to 120°C (EPDM)
Suitable Media
Water, Oil and gas.

HC41X Low noise check valve material:
No.
Part
Material
1
Body
Cast ion/Ductile iron/WCB/Stainless steel
2
Shaft
Stainless steel
3
Seat
Cast ion/Ductile iron/WCB/Stainless steel
4
Disc
Ductile Iron / Brass / Stainless Steel+EPDM
5
Spring
NBR / EPDM
6
Location ring
Brass
