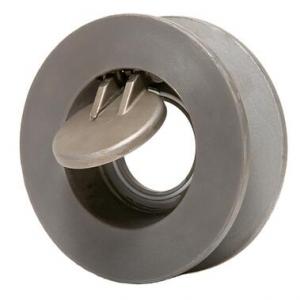

Single disc wafer check valve

Single disc wafer check valveSingle disc wafer check valve
Single disc wafer check valve

Single disc wafer check valve Product introduction

 China wafer check valve manufacturer, factory, company and supplier. Single disc wafer check valve is applicable for various pipelines with nominal pressure of PN1.0 Mpa~42.0Mpa, Class 150LB~2500LB and nominal diameter of DN15~1200mm,NPS 1/2-48 and working temperature of -196~540 degree Celsius. Single disc wafer check valve can be used for protecting from medium backflowing.The different materials selection can apply to the medium involving water,steam,oils,nitric acid,acetid,strong oxidizing medium and urea etc.

Single disc wafer check valve specification
Face to face per ANSI B 16.10
Flange ends dimension ANSI B 16.5/ANSI B 16.47
Final inspection tests to API598.
Sizes: 1/2" - 24" ,DN15- DN600
Pressure Rating: Class150 - Class2500,PN16 - PN420
working temperature: -196~540 degree Celsius.
Material: WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, etc.


Single disc wafer check valve feature
1. Single disc wafer check valve structure length is short, its structure length is only 1/4~1/8 of the traditional flange check valve;
2. Single disc wafer check valve is sensitive action, good sealing performance;
3. Single disc wafer check valve is small volume, light weight, its weight is only 1/4~1/20 of the traditional flange check valve;
4. Single disc wafer check valve disc stroke is short, the valve closing impact is small; 5. The disc closes quickly, and the pressure of the water hammer is small;
6. Single disc wafer check valve overall structure, simple and compact, beautiful shape; 7. Horizontal pipe or vertical pipe can be used, easy to install;
8. Long service life, high reliability.
9.Flow passage unobstructed, fluid resistance is small;


Single disc wafer check valve structure and dimension

Single disc wafer check valve structure
Single disc wafer check valve structure and dimension
Single disc wafer check valve structure and dimension
Remark: If you need other size and pressure class which is not in the list, you can contact us.
