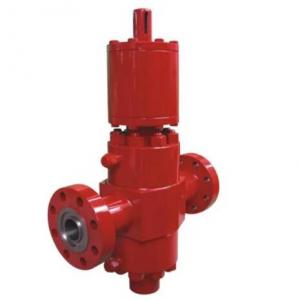

10000 PSI Hydraulic gate valve API 6A

10000 PSI Hydraulic gate valve API 6A10000 PSI Hydraulic gate valve API 6A
10000 PSI Hydraulic gate valve API 6A

10000 PSI Hydraulic gate valve API 6A Product introduction

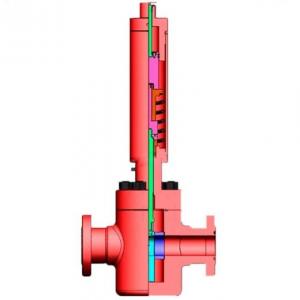

 China API 6A Hydraulic gate valve for API 6A Hydraulic gate valve 5000 PSI to 20000 PSI,which is to be wellhead valves, 10000 PSI Hydraulic gate valve API 6A is applicable for oil and gas wellhead. API 6A Hydraulic gate valve is designed, manufactured and tested as per API Spec. 6A. The API 6A Hydraulic gate valve open and close is controlled by hydraulic piston, which can be safer and quicker, valve stem packing and seat are elastic energy storage sealing structure, which has good seal performance, and valve with balance tail rod, lower valve torque and indication function, moreover, double acting actuator requires hydraulic power to open and close, which can provide positive control during working.


Name                                        API 6A Hydraulic Gate Valve
Model HYD gate valve
Pressure 5000PSI~20000PSI
Diameter 1-13/16”~13-5/8”(46mm~346mm)
Working Temperature  -46℃~121℃(LU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2
is often used in oil and gas industry. Note: Hydraulic actuator: 3000psi working pressure and 1/2” NPT connection

10000 PSI Hydraulic gate valve API 6A design specification:
API 6A Hydraulic gate valve is in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4    Material Class: AA~FF   Performance Requirement: PR1-PR2 Temperature Class: LU



10000 PSI Hydraulic gate valve API 6A features:
◆ Balancing stem that allows gate to stay in position unless hydraulic power is supplied to actuator to positively open or close valve
◆ Gate to seat, seat to body, bonnet seal and stem backseat are metal to metal sealing
◆ Linear double acting actuators guarantee opening valves rapidly in 30 seconds .

10000 PSI Hydraulic gate valve API 6A Technical parameters

Name                                        Hydraulic Gate Valve
Model HYD gate valve
Pressure 5000PSI~20000PSI
Diameter 1-13/16”~13-5/8”(46mm~346mm)
Working Temperature  -46℃~121℃(LU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2

10000 PSI Hydraulic gate valve API 6A Related Products

Previous:5000 PSI Wellhead gate valve API 6A

Next:PSL1 PSL2 API 6A gate valve 15000 PSI
