5000 PSI Wellhead gate valve API 6A

5000 PSI Wellhead gate valve API 6A5000 PSI Wellhead gate valve API 6A
5000 PSI Wellhead gate valve API 6A

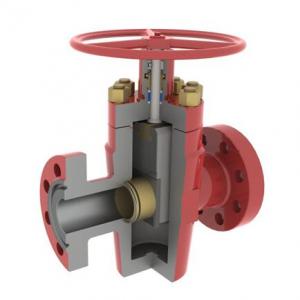

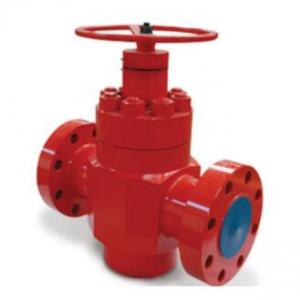

5000 PSI Wellhead gate valve API 6A Product introduction

 China API 6A gate valve, wellhead gate valve manufacturer for 2000 PSI to 20000 PSI gate valve.5000 PSI API 6A wellhead gate valve featured by high performance and bi-directional sealing, 5000 PSI wellhead gate valve API 6A is a counterpart of FC gate valves that gives fairly good performance under high pressure service.5000 PSI wellhead gate valve API 6A is applicable for oil and gas wellhead, Christmas tree and choke and kill manifold rated 5,000Psi to 20,000Psi. No special tools are required when it comes to replace valve gate and seat.

5000 PSI Wellhead gate valve  API 6A feature:
◆ Forging valve body and bonnet
◆ Small operating torque
◆ Double metal sealing for valve body and bonnet
◆ For any positional gate, it is metal to metal rear seat sealing.
◆ Lubricating nipple for easy maintenance.
◆ Guide of valve disc to assures lubrication of valve body and protection of valve disc surface.
◆ Flanged connection
◆ Manual or Hydraulic operation.
◆ The user-friendly design makes operation an easy job and max saves the cost.

5000 PSI Wellhead gate valve API 6A Technical parameters

5000 PSI API 6A wellhead gate valve is in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.

Product Specification Level              PSL1 ~4
Material Class AA~FF
Performance Requirement PR1-PR2
Temperature Class PU


5000 PSI Wellhead gate valve  API 6A Parameter

Name                                    API 6A manual gate valve
Model FC Slab gate valve
Pressure 2000PSI~20000PSI
Diameter 1-13/16”~9”(46mm~230mm)
Working Temperature  -60℃~121℃(KU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2

5000 PSI Wellhead gate valve API 6A Related Products
