API 6A Wellhead casing head

API 6A Wellhead casing headAPI 6A Wellhead casing head
API 6A Wellhead casing head

API 6A Wellhead casing head Product introduction

 China API 6A Wellhead casing head manufacturer, factory and supplier, API 6A Wellhead casing head is the lowest part of the wellhead assembly and is always connected to the surface casing string. API 6A Wellhead casing head supports subsequent drilling wellhead and completion equipment.



API 6A Wellhead casing head Functions
◆ Provides for attachment to surface casing string.
◆ Supports blowout preventers while hole is drilled for next casing string.
◆ Provides for suspending and packing off the next casing string.
◆ Provides outlets for annular access.
◆ Provides for testing BOPs while drilling.



C-22
API 6A Wellhead casing head Features

◆ C-22 accepts C-21 non-automatic sealing casing hanger w/ type H seal ring, C-22 & C-122 automatic sealing casing hanger.
◆ C-22-BP-ET has bowl-protector lockdown screws in the top flange.
◆ C-22 eliminates the need for lockdown screws to retain bowl protectors.
◆ Bottom preparation can be either male-threaded, female-threaded,
slip-on weld or Slip Loc.
Benefits
◆ Straight bowl prevents wedge-locking of bowl protectors, casing hang
ers and test plugs.
◆ Seal bore less likely to be damaged during drilling.
◆ Detachable base plate available for C-22 heads provides time savings
and adds value due to better utilization of customer-owned property.
◆ C-22-EG reduces number of leak paths, lowers cost and increases safety
as there is no need to work beneath the BOPs.



C-29
API 6A Wellhead casing head Features

◆ C-29 offers same features as industry standard C-22 with the exception
of the EG option.
◆ C-29-ET has multiple lockdown screws in top-flange which retain the
hanger and can be used to energize the hanger packoff seal.
Benefits
◆ Deeper bowl accepts C-29/C-129/C-229/C121-S extreme-load casing
hangers in addition to other FMC Surface Wellhead casing hangers.
◆ The lockdown screws of the C-29-ET can also be used as bowl-protector
hold-down screws.

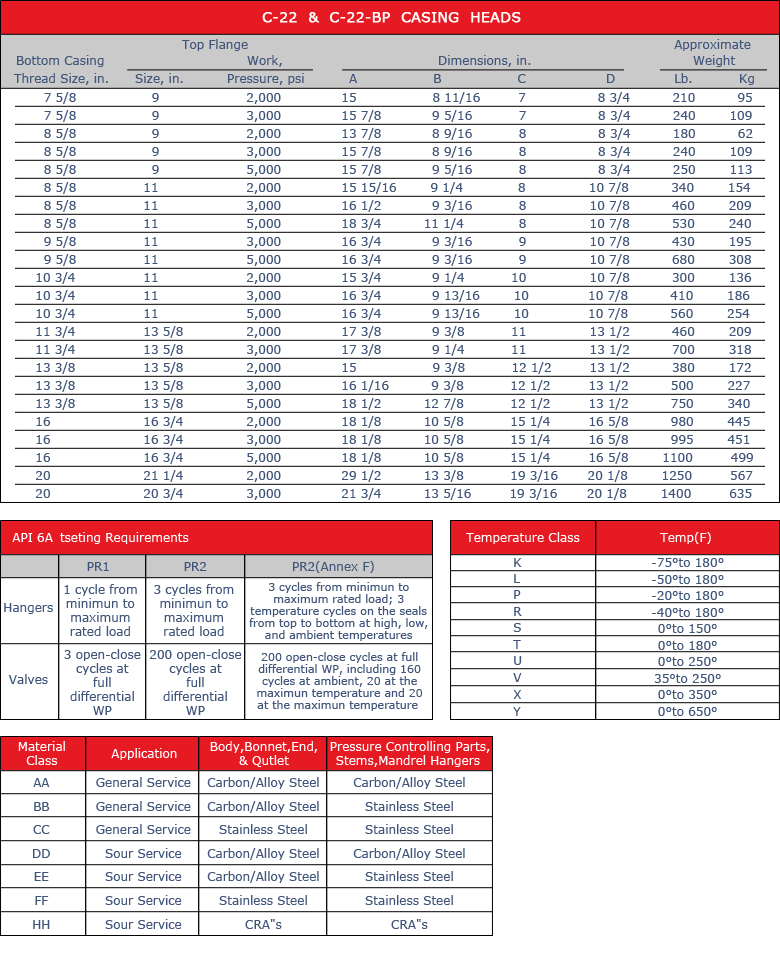

API 6A Wellhead casing head Technical parameters

API 6A Wellhead casing head parameter

API 6A Wellhead casing head Main part material

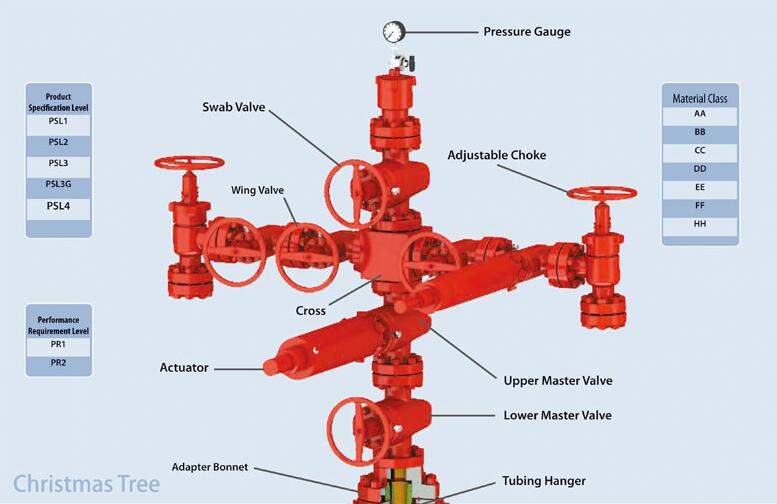

API 6A Christmas Tree

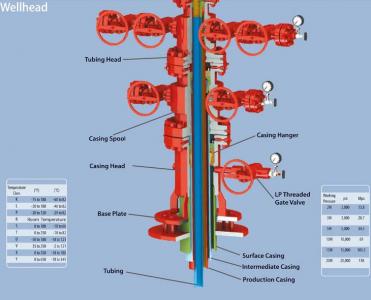

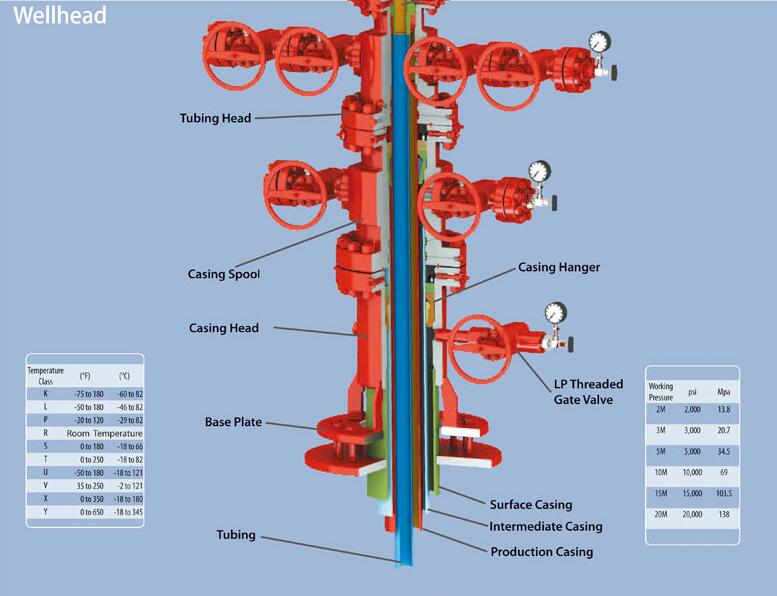

API 6A Wellhead

API 6A Wellhead casing head Related Products
