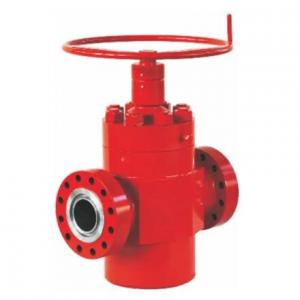

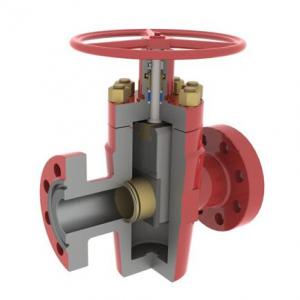

API 6A Wellhead gate valve

API 6A Wellhead gate valve Product introduction

　China API 6A Wellhead gate valve manufacturer,factory and supplier,API 6A Wellhead gate valve featured by high performance and bi-directional sealing, API 6A Wellhead gate valve is a counterpart of FC gate valves that gives fairly good performance under high pressure service. API 6A Wellhead gate valve is applicable for oil and gas wellhead, Christmas tree and choke and kill manifold rated 5,000Psi to 20,000Psi. No special tools are required when it comes to replace valve gate and seat.

API 6A Wellhead gate valve feature:
◆ Forging valve body and bonnet
◆ Small operating torque
◆ Double metal sealing for valve body and bonnet
◆ For any positional gate, it is metal to metal rear seat sealing.
◆ Lubricating nipple for easy maintenance.
◆ Guide of valve disc to assures lubrication of valve body and protection of valve disc surface.
◆ Flanged connection
◆ Manual or Hydraulic operation.
◆ The user-friendly design makes operation an easy job and max saves the cost.

API 6A Wellhead gate valve Technical parameters

API 6A Wellhead gate valve is in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.

Product Specification Level	PSL1 ~4
Material Class	AA~FF
Performance Requirement	PR1-PR2
Temperature Class	PU

API 6A Wellhead gate valve Parameter

Name	API 6A Slab gate valve
Model	FC Slab gate valve
Pressure	2000PSI～20000PSI
Diameter	1-13/16”～9”(46mm～230mm)
Working Temperature	-60℃～121℃(KU Grade)
Material Level	AA、BB、CC、DD、EE、FF、HH
Specification Level	PSL1～4
Performance Level	PR1～2
