API 6A Lift check valve

API 6A Lift check valveAPI 6A Lift check valve
API 6A Lift check valve

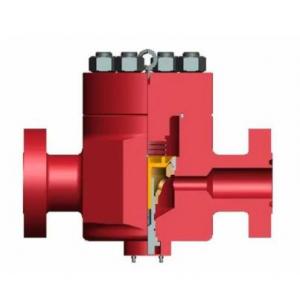

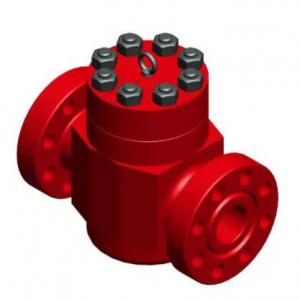

API 6A Lift check valve Product introduction

 China API 6A Check valve manufacturer,factory and supplier,API 6A Lift check valve is designed as per API 6A 21th edition standard. API 6A Lift check valve flow in a single direction and end connections are complied with API Spec 6A, metal-to-metal seal creates a stable performance for high pressure, high-temperature conditions. API 6A Lift check valve is used for Chock manifolds and Christmas trees, we can offer the bore size from 2-1/16 to 7-1/16 inch, and the pressure range from 2000 to 15000psi.


API 6A Lift check valve design specification:
Standard API 6A Check valves are in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.
Product Specification Level: PSL1 ~4    Material Class: AA~FF   Performance Requirement: PR1-PR2 Temperature Class: LU



API 6A Lift check valve product features:
◆ Reliable seal,and the more pressure the better sealing
◆ Small vibration noise
◆ The sealing surface between gate and body is welded with hard alloy, which has good wear resistance performance
◆ The check valve structure can be Lift, Swing or Piston type.

API 6A Lift check valve Technical parameters

Name                                           API 6A Check Valve
Model Lift Type Check Valve
Pressure 2000PSI~15000PSI
Diameter 2-1/16~7-1/16(52mm~180mm)
Working Temperature  -46℃~121℃(KU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2
