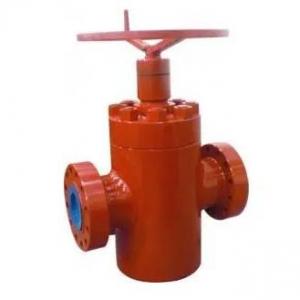

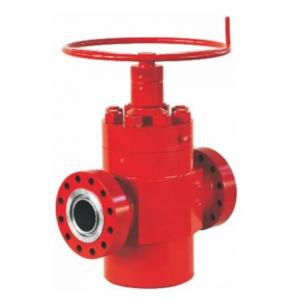

3000 PSI API 6A Gate valve PR1 PR2

3000 PSI API 6A Gate valve PR1 PR23000 PSI API 6A Gate valve PR1 PR2
3000 PSI API 6A Gate valve PR1 PR2

3000 PSI API 6A Gate valve PR1 PR2 Product introduction

 3000 PSI API 6A gate valve PR1 PR2 featured by high performance and bi-directional sealing, 3000 PSI API 6A gate valve PR1 PR2 is a counterpart of FC gate valves that gives fairly good performance under high pressure service. 3000 PSI API 6A gate valve PR1 PR2  is applicable for oil and gas wellhead, Christmas tree and choke and kill manifold rated 5,000Psi to 20,000Psi. No special tools are required when it comes to replace valve gate and seat.

 3000 PSI API 6A gate valve PR1 PR2 feature:
◆ Forging valve body and bonnet
◆ Small operating torque
◆ Double metal sealing for valve body and bonnet
◆ For any positional gate, it is metal to metal rear seat sealing.
◆ Lubricating nipple for easy maintenance.
◆ Guide of valve disc to assures lubrication of valve body and protection of valve disc surface.
◆ Flanged connection
◆ Manual or Hydraulic operation.
◆ The user-friendly design makes operation an easy job and max saves the cost.

3000 PSI API 6A Gate valve PR1 PR2 Technical parameters

 3000 PSI API 6A gate valve PR1 PR2  is in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.

Product Specification Level              PSL1 ~4
Material Class AA~FF
Performance Requirement PR1-PR2
Temperature Class PU


 3000 PSI API 6A gate valve PR1 PR2  Parameter

Name                                    API 6A manual gate valve
Model FC Slab gate valve
Pressure 2000PSI~20000PSI
Diameter 1-13/16”~9”(46mm~230mm)
Working Temperature  -60℃~121℃(KU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2
