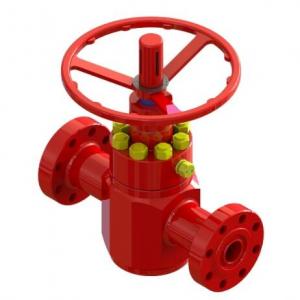

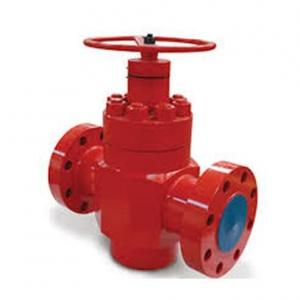

PSL1 PSL2 API 6A gate valve 15000 PSI

PSL1 PSL2 API 6A gate valve 15000 PSIPSL1 PSL2 API 6A gate valve 15000 PSI
PSL1 PSL2 API 6A gate valve 15000 PSI

PSL1 PSL2 API 6A gate valve 15000 PSI Product introduction

 PSL1 PSL2 API 6A gate valve 15000 PSI featured by high performance and bi-directional sealing, PSL1 PSL2 API 6A gate valve 15000 PSI is a counterpart of FC gate valves that gives fairly good performance under high pressure service. API 6A gate valve is applicable for oil and gas wellhead, Christmas tree and choke and kill manifold rated 5,000Psi to 20,000Psi. No special tools are required when it comes to replace valve gate and seat.

PSL1 PSL2 API 6A gate valve 15000 PSI feature:
◆ Forging valve body and bonnet
◆ Small operating torque
◆ Double metal sealing for valve body and bonnet
◆ For any positional gate, it is metal to metal rear seat sealing.
◆ Lubricating nipple for easy maintenance.
◆ Guide of valve disc to assures lubrication of valve body and protection of valve disc surface.
◆ Flanged connection
◆ Manual or Hydraulic operation.
◆ The user-friendly design makes operation an easy job and max saves the cost.

PSL1 PSL2 API 6A gate valve 15000 PSI Technical parameters

API 6A Slab gate valve is in accordance with API 6A 21th latest Edition, and use the right materials for H2S service according to NACE MR0175 standard.

Product Specification Level              PSL1 ~4
Material Class AA~FF
Performance Requirement PR1-PR2
Temperature Class PU


PSL1 PSL2 API 6A gate valve 15000 PSI Parameter

Name                                    API 6A gate valve
Model Slab gate valve
Pressure 2000PSI~20000PSI
Diameter 1-13/16”~9”(46mm~230mm)
Working Temperature  -60℃~121℃(KU Grade)
Material Level AA、BB、CC、DD、EE、FF、HH
Specification Level PSL1~4
Performance Level PR1~2
