API 6A wellhead tubing head spool

API 6A wellhead tubing head spoolAPI 6A wellhead tubing head spool
API 6A wellhead tubing head spool

API 6A wellhead tubing head spool Product introduction

 China API 6A Wellhead tubing head spool manufacturer, factory and supplier, API 6A Wellhead tubing head spool features a versatile straight bore design for single and multiple completions in working pressures through 20,000 psi. This design accepts all TC series tubing hangers and easily converts from a single completion to multiple completion with the addition of an alignment pin or pins.

Optional Bottom Preparations, Outlets, Options
API 6A Wellhead tubing head spool can be furnished with integral "OO", "P" and "PP" seals, "Xbushing,"PE" bushing, "4-0" bushing, and metal-to-metal preparations. Standard outlets are studded, but can be furnished with flanged or threaded outlets. Available options include clamp hubs. API 6A Wellhead tubing head spool  ccepts a wide range of tubing hanger styles including mandrel and wrap-around.API 6A Wellhead tubing hangers are available for tubing sizes ranging from 2-3/8" through 4-1/2", in nominal od sizes from 7-1/16" through 13-5/8".

TC Tubing Spools are used only with single-string TC Series Tubing Hangers and packoffs.

TCM, and TC-60 Tubing Spools can be used with all TC Series Tubing Hangers and packoffs, both single and dual-split style.

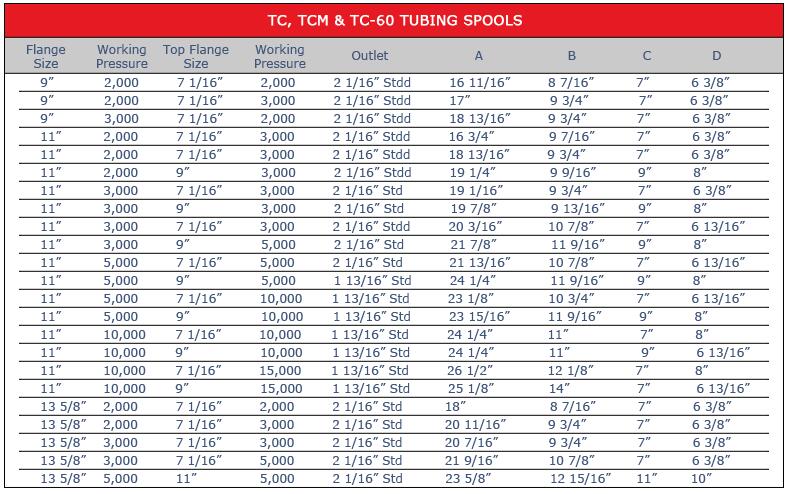

API 6A wellhead tubing head spool Technical parameters

API 6A wellhead tubing head spool
API 6A wellhead tubing head spool

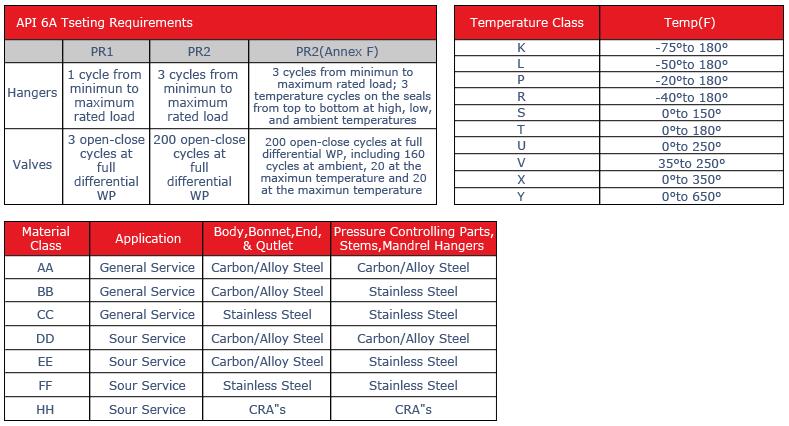

API 6A wellhead tubing head spool Main part material

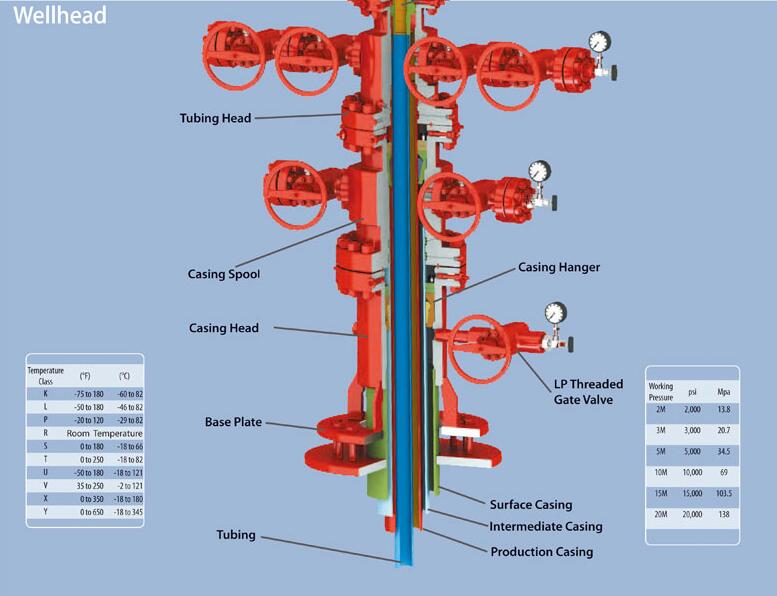

API 6A wellhead

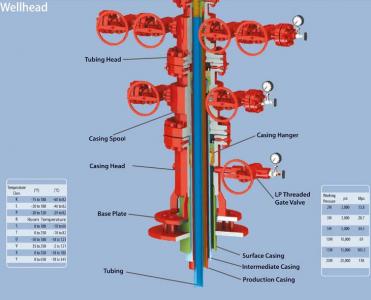

API 6A wellhead

API 6A wellhead tubing head spool Related Products
