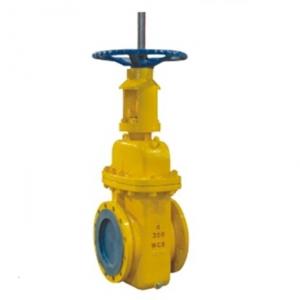

Double disc flat gate valve manufacturer, factory and supplier. Double disc flat gate valve is a sliding valve whose closing part is a parallel gate. The closing member can be a single gate or a double gate with a distraction mechanism in between. The pressing force of the gate to the valve seat is controlled by the medium pressure acting on the floating gate or the floating valve seat. If Double disc flat gate valve is a double gate plate gate valve, the expansion mechanism between the two gates can supplement this pressing force.

Double disc flat gate valve Structural Features
Double disc flat gate valve adopts the new floating seal structure, which is suitable for the opening, closing and adjusting devices of control media such as oil and natural gas with pressure less than 15.0MPa and temperature from -29 ℃ to 121 ℃. Double disc flat gate valve has a novel structural design and material selection. Appropriate, rigorous test, light operation, strong anti-corrosion, abrasion resistance and erosion resistance. It is an ideal new equipment in the petroleum industry.
1. Adopting floating valve seat, two-way opening and closing, reliable sealing and flexible opening and closing.
2. The gate is provided with guide strips for precise guidance, and the sealing surface is spray welded with carbide, which is resistant to erosion.
3. Double disc flat gate valve body has a high load-bearing capacity and the channel is straight-through. When fully opened, it is similar to the gate diversion hole and the straight pipe, and the flow resistance is very small. The valve stem adopts composite filler, multiple seals, making the seal reliable and low friction.
4. When closing the valve, turn the handwheel clockwise to move the shutter down to the bottom. Due to the pressure of the medium, the inlet seal seat is pushed towards the direction of the shutter to form a larger seal specific pressure, thus forming the first seal. At the same time, the shutter is pressed against the sealing seat at the outlest end to become a double seal.
5. Due to the double seal, the consumable parts can be replaced without affecting the work of the pipeline. This is an important feature that our products take priority over similar products at home and abroad.
6. When the gate is open, turn the hand wheel counterclockwise, the gate moved up, and the diversion hole and channel hole intersect. With the rise of the gate, the through hole gradually increases, and when the limit position is reached, the diversion hole and the passage hole coincide, and they are fully opened at this time
