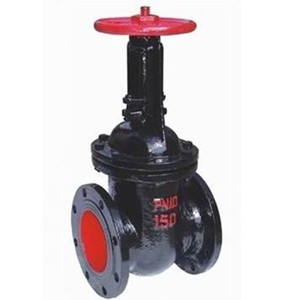

Z41T-10 cast iron gate valve Product introduction

Z41T-10 cast iron gate valve manufacturer, factory and supplier. Z41T-10 cast iron gate valve is rising stem, cast iron body, brass seat design. Z41T-10 cast iron gate valve is widely used in petroleum, chemical, pharmaceutical, electric power and other industries, in the nominal pressure ≤1.0MPa steam, water, oil medium pipeline for opening and closing.

Z41T-10 cast iron gate valve driving mode can choose manual, worm gear, pneumatic, electric, connection mode can choose flange, structure form can choose wedge, seal structure can choose soft seal, hard seal, pressure range PN0.1-2.5Mpa, nominal diameter of DN50-1200mm, material can choose gray cast iron, ductile cast iron.

Z41T-10 cast iron gate valve specification
Model number: Z41T
Nominal diameter: 50MM-1200MM
Operating pressure: 1.0MPA-1.6MPA
Connection mode: flange connection
Form: manual
Main function: switch function
Use medium: water industry pipeline
Material: HT200 cast iron
Standard: Mechanical department standard or custom non-standard



Z41T-10 cast iron gate valve Main dimension

DN L D D1 D2 b H H1 z×Φd D0 kg
50 180 160 125 100 20 286 345 4×Φ18 180 17
65 195 180 145 120 20 331 410 4×Φ18 180 22
80 210 195 160 135 22 375 470 4×Φ18 200 30
100 230 215 180 155 22 430 544 8×Φ18 200 35
125 255 245 210 185 24 523 660 8×Φ18 240 52
150 280 280 240 210 24 592 762 8×Φ23 240 70
200 330 335 295 265 26 772 993 8×Φ23 320 125
250 380 390 350 320 28 903 1176 12×Φ23 320 170
300 420 440 400 368 28 1043 1366 12×Φ23 400 226
350 450 500 460 428 30 1173 1540 16×Φ23 400 360
400 480 565 515 482 32 1245 1765 16×Φ25 500 444
450 510 615 565 532 32 1500 1970 20×Φ25 500 590
500 540 670 620 585 34 1780 2280 20×Φ25 720 740
600 600 780 725 685 36 2010 2620 20×Φ30 720 960
