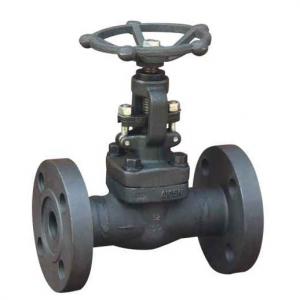

Z41H A105 Flanged gate valve Product introduction
Z41H A105 Flanged gate valve Technical parameters

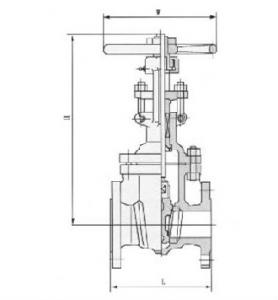

Z41H A105 Flanged gate valve Main dimension
| DN | Dimension | |||||||
| L | d | S | L1 | T | L2 | H | D0 | |
| Z41H-16C Z41H-25 Z41H-40 | ||||||||
| 15 | 90 | 13 | 22.5 | 10 | 1/2 | 15 | 151 | 118 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4 | 17 | 182 | 130 |
| 25 | 120 | 23 | 34.5 | 12 | 1 | 19 | 197 | 150 |
| 32 | 120 | 28 | 43 | 14 | 1? | 21 | 201 | 166 |
| 40 | 135 | 36 | 49 | 15 | 1? | 21 | 227 | 180 |
| 50 | 155 | 45 | 61 | 16 | 2 | 25 | 253 | 180 |
| Z41H-64 | ||||||||
| 15 | 90 | 13 | 22.5 | 10 | 1/2 | 15 | 151 | 118 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4 | 17 | 182 | 130 |
| 25 | 120 | 23 | 34.5 | 12 | 1 | 19 | 197 | 150 |
| 32 | 130 | 28 | 43 | 14 | 1? | 21 | 212 | 180 |
| 40 | 150 | 36 | 49 | 15 | 1? | 21 | 231 | 180 |
| 50 | 155 | 45 | 61 | 16 | 2 | 25 | 253 | 180 |
| Z41H-100 | ||||||||
| 15 | 90 | 13 | 22.5 | 10 | 1/2 | 15 | 151 | 118 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4 | 17 | 182 | 130 |
| 25 | 120 | 23 | 34.5 | 12 | 1 | 19 | 197 | 150 |
| 32 | 130 | 28 | 43 | 14 | 1? | 21 | 212 | 180 |
| 40 | 150 | 36 | 49 | 15 | 1? | 21 | 231 | 180 |
| 50 | 155 | 45 | 61 | 16 | 2 | 25 | 253 | 180 |
Z41H A105 Flanged gate valve Related Products
