Big size rubber seat gate valve

Big size rubber seat gate valveBig size rubber seat gate valve
Big size rubber seat gate valve

Big size rubber seat gate valve Product introduction

Big size rubber seat gate valve manufacturer, factory and supplier.Big size rubber seat gate valve is risng stem non-rising steam, soft seated structure,between the elastic seat seal of the dark rod, a good sealing effect is used to overcome the general bad gate reading seal.Leakage and raw pot phenomenon.More efficient section of the installation space. Big size rubber seat gate valve can be widely used in white water, sewage, construction.petroleum.chemical industry.foodstuff.Medicine, light workshop, electric power, ship.metallurgy. Fluid lines such as the energy system are used as regulating and interception devices.

Big size rubber seat gate valve specification:
Nominal pressure: 1.0~2.5MPa
Operating temperature: 0~120℃
Flange standard: GB / T 17241.6 GB9113
Nominal general diameter: 40~1200mm
Suitable medium: water, oil, gas, etc
Test standard: GB13927

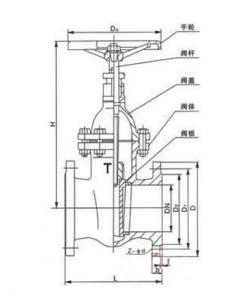

Big size rubber seat gate valve Main dimension

DN
500
600
700
800
900
1000
1200
L
457
508
660
720
780
840
960
H(H.W.)
1480
1665
2200
2800
2800
3000
3000
H(B.G.)
1650
1900
2350
2950
2950
3150
3150
H(Electric)
Actuator decied by client

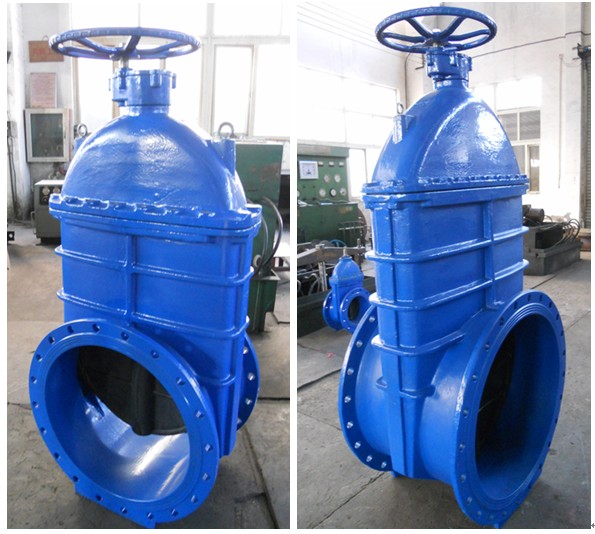

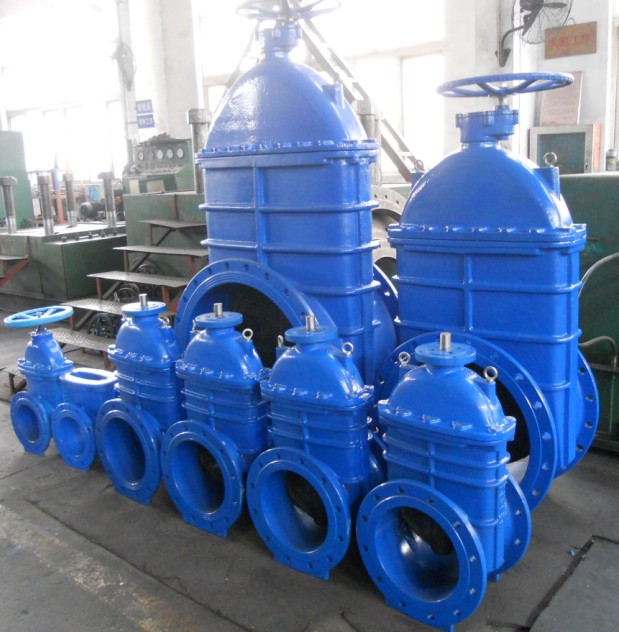

Big size rubber seat gate valve Product show
