Z45T-10 cast iron gate valve

Z45T-10 cast iron gate valveZ45T-10 cast iron gate valve
Z45T-10 cast iron gate valve

Z45T-10 cast iron gate valve Product introduction

Z45T-10 cast iron gate valve manufacturer, factory and supplier. Z45T-10 cast iron gate valve is non-rising stem, cast iron body, brass seat design. Z45T-10 cast iron gate valve is widely used in petroleum, chemical, pharmaceutical, electric power and other industries, in the nominal pressure ≤1.0MPa steam, water, oil medium pipeline for opening and closing.

Z45T-10 cast iron gate valvedriving mode can choose manual, worm gear, pneumatic, electric, connection mode can choose flange, structure form can choose wedge, seal structure can choose soft seal, hard seal, pressure range PN0.1-2.5Mpa, nominal diameter of DN50-1200mm, material can choose gray cast iron, ductile cast iron.

Z45T-10 cast iron gate valve specification
Model number: Z45T
Nominal diameter: 50MM-1200MM
Operating pressure: 1.0MPA-1.6MPA
Connection mode: flange connection
Form: manual
Main function: switch function
Use medium: water industry pipeline
Material: HT200 cast iron
Standard: Mechanical department standard or custom non-standard

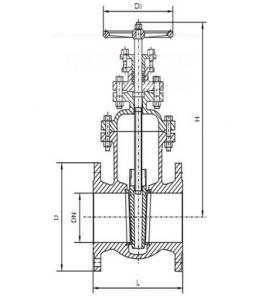

Z45T-10 cast iron gate valve Main dimension

DN L D D1 D2 z×Φd H
50 178 165 125 102 4×Φ19 285
65 190 185 145 122 4×Φ19 305
80 203 200 160 138 8×Φ19 330
100 229 220 180 158 8×Φ19 405
125 254 250 210 188 8×Φ19 460
150 267 285 240 212 8×Φ23 506
200 292 340 295 268 8×Φ23 610
250 330 395 350 320 12×Φ23 730
300 356 445 400 370 12×Φ23 950
