Z945T Big size electric cast iron gate valve

Z945T Big size electric cast iron gate valveZ945T Big size electric cast iron gate valve
Z945T Big size electric cast iron gate valve

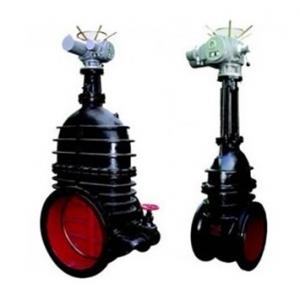

Z945T Big size electric cast iron gate valve Product introduction

Z945T cast iron gate valve manufacturer, factory and supplier. Z945T Big size electric cast iron gate valve is composed of non-rising stem, cast iron body, brass seat gate valve and on-off electric actuator for automaic control. Z945T Big size electric cast iron gate valve is widely used in petroleum, chemical, pharmaceutical, electric power and other industries, in the nominal pressure ≤1.0MPa steam, water, oil medium pipeline for opening and closing.

Z945T Big size electric cast iron gate valve pressure range PN0.1-2.5Mpa, nominal diameter of DN50-1200mm, material can choose gray cast iron, ductile cast iron.

Z945T Big size electric cast iron gate valve specification
Model number: Z945T
Nominal diameter: 50MM-1200MM
Operating pressure: 1.0MPA-1.6MPA
Connection mode: flange connection
Form: manual
Main function: switch function
Use medium: water industry pipeline
Material: HT200 cast iron
Standard: Mechanical department standard or custom non-standard

Z945T Big size electric cast iron gate valve Technical parameters

Z945T Big size electric cast iron gate valve Performance
Model
PN
Working pressure/MPa
Temperature/℃
Medium
Z945T-10
10
1.0
180
water,etc
Z941T-10
10
1.0

Z945T Big size electric cast iron gate valve Main part material


Z945T Big size electric cast iron gate valve Main dimension

DN
L
D
D1
D2
b
z×Φd
D3
H
H1
D0
Weight/kg
40
240
150
110
88
20
4×Φ17.5
164
602
602
300
68
50
250
165
125
102
20
4×Φ17.5
164
610
610
300
69
65
270
185
145
122
20
4×Φ17.5
164
612
612
300
80
80
280
200
160
133
20
8×Φ17.5
195
690
690
300
83
100
300
220
180
158
20
8×Φ17.5
220
833
833
300
94
125
325
250
210
184
22
8×Φ17.5
268
876
876
300
125
150
350
285
240
212
24
8×Φ22
280
958
958
300
160
200
400
340
295
268
26
12×Φ22
370
1096
1096
300
225
250
450
405
355
320
30
12×Φ26
460
1244
1244
300
348
300
500
460
410
370
30
12×Φ26
530
1430
1474
400
485
350
550
520
470
430
34
16×Φ26
610
1565
1663
400
696
400
600
580
525
482
36
16×Φ30
710
1735
1886
400
1000
500
700
715
650
585
44
20×Φ33
5860
1961
2181
400
1064
