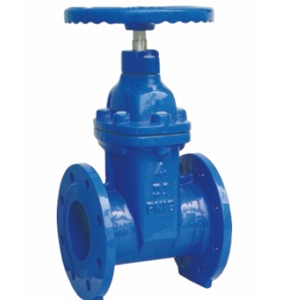

Z45X-10Q Ductile iron gate valve Product introduction

Z45X-10Q Ductile iron gate valve manufacturer, factory and supplier. Z45X-10Q Ductile iron gate valve is non-rising stem, soft seated structure,between the elastic seat seal of the dark rod, a good sealing effect is used to overcome the general bad gate reading seal.Leakage and raw pot phenomenon.More efficient section of the installation space.Z45X-10Q Ductile iron gate valve can be widely used in white water, sewage, construction.petroleum.chemical industry.foodstuff.Medicine, light workshop, electric power, ship.metallurgy. Fluid lines such as the energy system are used as regulating and interception devices.

Z45X-10Q Ductile iron gate valve specification:
Nominal pressure: 1.0~2.5MPa
Operating temperature: 0~120℃
Flange standard: GB / T 17241.6 GB9113
Nominal general diameter: 40~1200mm
Suitable medium: water, oil, gas, etc
Test standard: GB13927

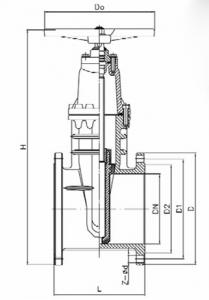

Z45X-10Q Ductile iron gate valve Main dimension

DN L D D1 D2 Z-¿d H D0
40 140 150 110 84 4-19 310 160
50 150 165 125 99 4-19 320 160
65 170 185 145 118 4-19 370 180
80 180 200 160 132 8-19 410 180
100 190 220 180 156 8-19 460 250
125 200 250 210 184 8-19 530 280
150 210 285 240 211 8-23 600 320
200 230 340 295 266 8-23 730 380
250 250 395 350 319 12-23 856 400
300 270 445 400 370 12-23 960 450
350 290 505 460 429 16-23 1070 450
400 310 565 515 480 16-28 1180 500
450 330 615 565 530 20-28 1300 500
500 350 670 620 582 20-28 1415 600
600 390 780 725 682 20-31 1630 600
700 430 895 840 794 24-34 1810 600
800 470 1015 950 901 24-34 2040 600
900 510 1115 1050 1001 28-34 2240 600
1000 550 1230 1160 1112 28-37 2450 600

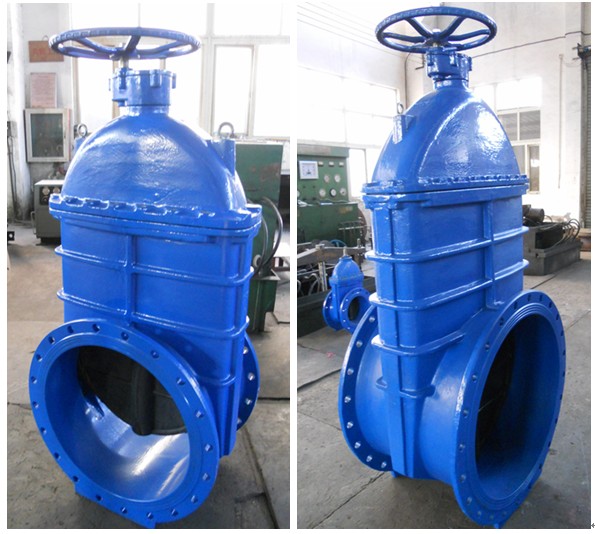

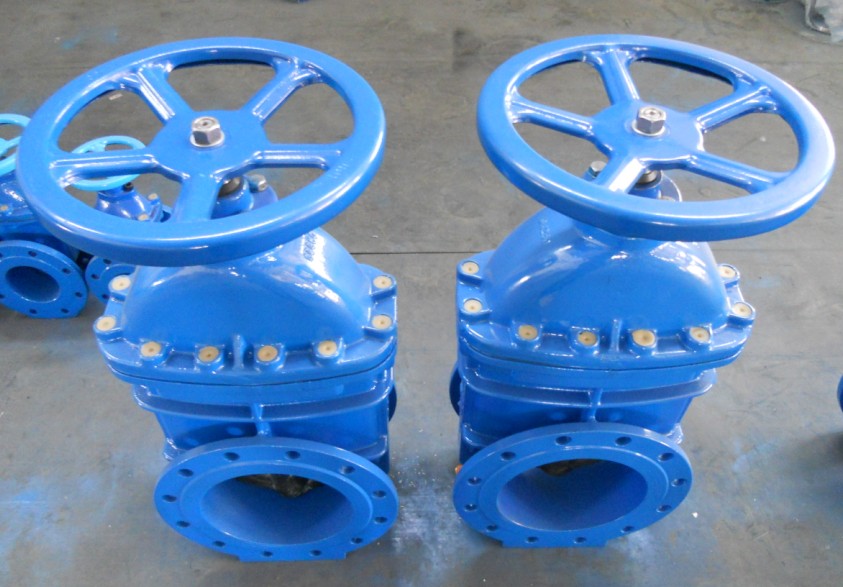

Z45X-10Q Ductile iron gate valve Product show
