Z45X Signal fire gate valve

Z45X Signal fire gate valveZ45X Signal fire gate valve

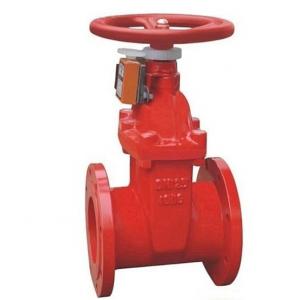

Z45X Signal fire gate valve

Z45X Signal fire gate valve Product introduction

Z45X Signal fire gate valve manufacturer, factory and supplier. Z45X Signal fire gate valve is non-rising stem, soft seated structure with signal feedback for fire system, between the elastic seat seal of the dark rod, a good sealing effect is used to overcome the general bad gate reading seal.Leakage and raw pot phenomenon.More efficient section of the installation space. Z45X Signal fire gate valve can be widely used in white water, sewage, construction, petroleum chemical industry, foodstuff.Medicine, light workshop, electric power, ship.metallurgy. Fluid lines such as the energy system are used as regulating and interception devices.

Z45X Signal fire gate valve specification:
Nominal pressure: 1.0~2.5MPa
Operating temperature: 0~120℃
Flange standard: GB / T 17241.6 GB9113
Nominal general diameter: 40~1200mm
Suitable medium: water, oil, gas, etc
Test standard: GB13927

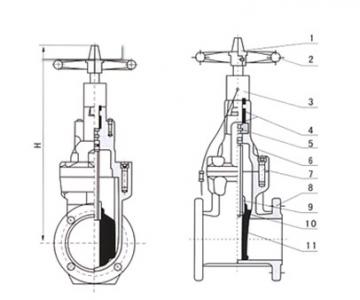

Z45X Signal fire gate valve Main dimension

DN 50 65 80 100 125 150 200 250 300 350 400
L 178 190 203 229 254 267 292 330 356 381 406
H 370 408 452 510 566 630 765 927 1048 1110 1320
