Z41F46 PTFE lined gate valve

Z41F46 PTFE lined gate valveZ41F46 PTFE lined gate valve
Z41F46 PTFE lined gate valve

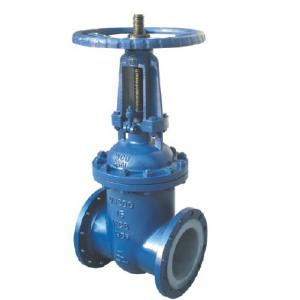

Z41F46 PTFE lined gate valve Product introduction

Z41F46 PTFE lined gate valve

Z41F46 PTFE lined gate valve Technical parameters


Z41F46 PTFE lined gate valve Main part material

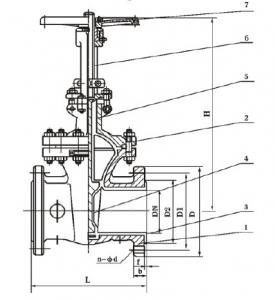

Z41F46 PTFE lined gate valve Main dimension

DN
Dimension
Outline
DN(mm)
NPS(inch)
L
D
D1
D2
f
b
Z-Фd
W
D0
H
WT(Kg)
PN0.6MPa
15
1/2
130
80
55
40
2
12
4-Ф12
100
100
120
5
20
3/4
150
90
65
50
2
14
4-Ф12
100
120
140
6
25
1
160
100
75
60
2
14
4-Ф12
120
130
150
7
32
11/4
180
120
90
70
2
16
4-Ф14
120
156
185
10
40
11/2
240
130
100
80
3
16
4-Ф14
160
165
205
18
50
2
250
140
110
90
3
16
4-Ф14
160
350
400
25
65
21/2
270
160
130
110
3
16
4-Ф14
180
370
435
30
80
3
280
185
150
125
3
18
4-Ф18
180
430
510
43
100
4
300
205
170
145
3
18
4-Ф18
220
495
595
58
125
5
325
235
200
175
3
20
8-Ф18
220
610
735
100
150
6
350
260
225
200
3
20
8-Ф18
240
670
820
115
200
8
400
315
280
255
3
22
8-Ф18
240
815
1015
145
250
10
450
370
335
310
3
24
12-Ф18
240
965
1215
230
300
12
500
435
395
362
4
24
12-Ф23
280
1140
1440
335
350
14
550
485
445
412
4
26
12-Ф23
280
1275
1625
540
400
16
600
535
495
462
4
28
16-Ф23
320
1445
1845
670
450
18
650
590
550
518
4
28
16-Ф23
320
1530
1980
780
500
20
700
640
600
568
4
30
16-Ф23
360
1725
2225
850
DN
Dimension
Outline
DN(mm)
NPS(inch)
L
D
D1
D2
f
b
Z-Фd
D0
H
H1
WT(Kg)
PN1.0MPa
15
1/2
130
95
65
45
2
14
4-Ф14
100
110
125
6
20
3/4
150
105
75
55
2
16
4-Ф14
100
120
140
7
25
1
160
115
85
65
2
16
4-Ф14
120
132
155
8
32
11/4
180
135
100
78
2
18
4-Ф18
120
156
185
11
40
11/2
240
145
110
85
3
18
4-Ф18
160
167
210
20
50
2
250
160
125
100
3
20
4-Ф18
160
358
410
28
65
21/2
270
180
145
120
3
20
4-Ф18
180
375
440
32
80
3
280
195
160
135
3
22
4-Ф18
180
435
515
45
100
4
300
215
180
155
3
22
8-Ф18
220
500
600
60
125
5
325
245
210
185
3
24
8-Ф18
220
615
740
110
150
6
350
280
240
210
3
24
8-Ф23
240
675
825
120
200
8
400
335
295
265
3
26
8-Ф23
280
820
1020
150
250
10
450
390
350
320
3
28
12-Ф23
320
970
1220
240
300
12
500
440
400
368
4
28
12-Ф23
320
1145
1445
340
350
14
550
500
460
428
4
30
16-Ф23
360
1280
1630
550
400
16
600
565
515
482
4
32
16-Ф25
400
1450
1850
680
450
18
650
615
565
532
4
32
20-Ф25
500
1538
1988
795
500
20
700
670
620
585
4
34
20-Ф25
500
1730
2230
880
PN1.6MPa Z41F46 PTFE lined gate valve
15
1/2
130
95
65
45
2
14
4-Ф14
120
110
130
7
20
3/4
150
105
75
55
2
16
4-Ф14
120
120
140
8
25
1
160
115
85
65
2
16
4-Ф14
120
135
160
9
32
11/4
180
135
100
78
2
18
4-Ф18
160
160
190
13
40
11/2
240
145
110
85
3
18
4-Ф18
160
170
220
25
50
2
250
160
125
100
3
20
4-Ф18
160
360
410
32
65
21/2
270
180
145
120
3
20
4-Ф18
180
380
440
38
80
3
280
195
160
135
3
22
8-Ф18
180
440
520
50
100
4
300
215
180
155
3
24
8-Ф18
240
500
600
68
125
5
325
245
210
185
3
26
8-Ф18
240
615
740
125
150
6
350
280
240
210
3
28
8-Ф23
280
680
830
170
200
8
400
335
295
265
3
30
12-Ф23
280
820
1020
210
250
10
450
405
355
320
3
32
12-Ф25
320
980
1230
260
300
12
500
460
410
375
4
34
12-Ф25
320
1150
1450
480
350
14
550
520
470
435
4
38
16-Ф25
400
1285
1635
620
400
16
600
580
525
485
4
40
16-Ф30
400
1455
1855
805
450
18
650
640
585
545
4
44
20-Ф30
500
1545
1990
880
500
20
700
705
650
608
4
46
20-Ф34
500
1735
2235
920
PN2.5MPa Z41F46 PTFE lined gate valve
DN
Dimension
Outline
DN(mm)
NPS(inch)
L
D
D1
D2
f
b
Z-Фd
D0
H
H1
WT(Kg)
PN2.5MPa
15
1/2
130
95
65
45
2
16
4-Ф14
120
110
130
8
20
3/4
150
105
75
55
2
16
4-Ф14
120
120
140
9
25
1
160
115
85
65
2
16
4-Ф14
160
135
160
10
32
11/4
180
135
100
78
2
18
4-Ф18
160
160
190
14
40
11/2
240
145
110
85
3
18
4-Ф18
180
170
220
28
50
2
250
160
125
100
3
20
4-Ф18
180
360
410
36
65
21/2
270
180
145
120
3
22
8-Ф18
240
380
440
45
80
3
280
195
160
135
3
22
8-Ф18
240
440
520
58
100
4
300
230
190
160
3
24
8-Ф23
280
500
600
76
125
5
325
270
220
188
3
28
8-Ф25
280
615
740
143
150
6
350
300
250
218
3
30
8-Ф25
320
680
830
178
200
8
400
360
310
278
3
34
12-Ф25
320
820
1020
243
250
10
450
425
270
332
3
36
12-Ф30
400
980
1230
275
300
12
500
485
430
390
4
40
16-Ф30
400
1150
1450
520
PN4.0MPa Z41F46 PTFE lined gate valve
15
1/2
130
95
65
46
2
14
4-Ф14
160
220
240
9
20
3/4
150
105
75
56
2
16
4-Ф14
180
256
280
12
25
1
160
115
85
65
3
16
4-Ф14
180
275
305
14
32
11/4
180
140
100
76
3
18
4-Ф18
200
285
318
16
40
11/2
200
150
110
84
3
18
4-Ф18
200
320
365
29
50
2
250
165
125
99
3
20
4-Ф18
280
371
425
33
65
21/2
280
185
145
118
3
22
8-Ф18
280
393
463
46
80
3
310
200
160
132
3
24
8-Ф18
320
455
535
53
100
4
350
235
190
156
3
24
8-Ф22
360
551
660
80
125
5
400
270
220
184
3
26
8-Ф26
400
634
755
128
150
6
450
300
250
211
3
28
8-Ф26
400
708
860
155
200
8
550
375
320
284
3
34
12-Ф30
450
858
1060
265
250
10
650
450
385
315
3
38
12-Ф33
560
1015
1270
370
300
12
750
515
450
409
4
42
16-Ф33
640
1200
1580
550
