Z44T-10 cast iron gate valve

Z44T-10 cast iron gate valveZ44T-10 cast iron gate valve
Z44T-10 cast iron gate valve

Z44T-10 cast iron gate valve Product introduction

Z44T-10 cast iron gate valve

Z44T-10 cast iron gate valve Technical parameters




Z44T-10 cast iron gate valve Main part material

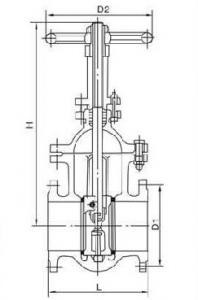

Z44T-10 cast iron gate valve Main dimension

Model DN(mm) Dimension (kg)
L D D1 D2 b-f Z-Φd H Do
Z44T-10
Z44W-10
40 165 145 145 85 3-18 4-18 240 135 16.5
50 180 160 160 100 3-20 4-18 260 180 20
65 195 180 180 120 3-20 4-18 300 180 25.5
80 210 195 195 135 3-22 4-18 345 200 31
100 230 215 215 155 3-22 8-18 395 200 47
125 255 245 245 185 3-24 8-18 478 240 64
150 280 280 280 210 3-24 8-23 558 240 100
200 330 335 335 265 3-26 8-23 720 320 144
250 380 390 390 320 3-28 12-23 845 320 -
300 420 440 440 368 4-28 12-23 990 400 -
350 450 500 500 428 3-30 16-23 1100 400 -
400 480 565 565 482 3-32 16-25 1200 500 -
450 510 615 615 532 3-32 20-25 1300 500 -
500 540 670 670 585 3-34 20-25 1500 500
