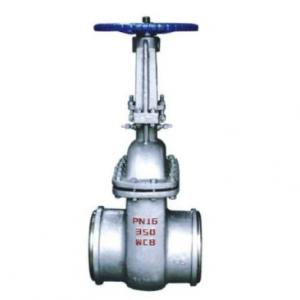

DSZ61H DSZ64H Water seal gate valve Product introduction
DSZ61H DSZ64H Water seal gate valve Technical parameters
DSZ61H DSZ64H Water seal gate valve Main part material

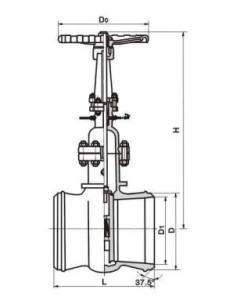

DSZ61H DSZ64H Water seal gate valve Main dimension
DN/mm |
L | α | H | DO | PNl.6/MPa | PN2.5/MPa | ||
| D | D1 | D | D1 | |||||
| 50 | 250 | 37o30' | 334 | 250 | 58 | 50 | 64 | 4g |
| 65 | 270 | 37o30' | 439 | 250 | 75 | 65 | 82 | 67 |
| 80 | 280 | 37o30' | 495 | 300 | 91 | 79 | 95 | 77 |
| 100 | 300 | 37o30' | 575 | 350 | 11O | 97 | 117 | 101 |
| 125 | 325 | 37o30' | 587 | 350 | 136 | 121 | 144 | 126 |
| 150 | 350 | 37o30' | 607 | 350 | 163 | 146 | 172 | 158 |
| 200 | 400 | 37o30' | 740 | 400 | 223 | 202 | 223 | 202 |
| 250 | 450 | 37o30' | 863 | 400 | 278 | 254 | 278 | 254 |
| 300 | 500 | 37o30' | 990 | 400 | 330 | 305 | 330 | 305 |
| 350 | 550 | 37o30' | 1137 | 500 | 382 | 352 | 382 | 352 |
| 400 | 600 | 37o30' | 1523 | 500 | 432 | 399 | 432 | 39g |
| 450 | 650 | 37o30' | 1618 | 600 | 485 | 451 | 485 | 451 |
| 500 | 700 | 37o30' | 1657 | 600 | 535 | 501 | 535 | 499 |
| 600 | 800 | 37o30' | 1746 | 700 | 636 | 601 | 636 | 599 |
DSZ64H-40、64、100 DSZ61H-40I、64I、100I DSZ61H DSZ64H Water seal gate valve
DN/mm |
L | D | α | PN4.O/MPa | PN6.4/MPa | PNlO.0/MPa | ||||||
| D1 | H | D0 | D1 | H | DO | D1 | H | D0 | ||||
| 50 | 250 | 64 | 37o30' | 49 | 345 | 300 | 50 | 350 | 300 | 49 | 350 | 300 |
| 65 | 270 | 83 | 37o30' | 67 | 441 | 300 | 66 | 447 | 300 | 64 | 447 | 300 |
| 80 | 280 | 96 | 37o30' | 79 | 495 | 350 | 77 | 499 | 350 | 75 | 499 | 350 |
| 100 | 300 | 117 | 37o30' | 101 | 575 | 350 | 99 | 582 | 400 | 87 | 582 | 400 |
| 125 | 325 | 144 | 37o30' | 126 | 587 | 400 | 129 | 590 | 400 | 125 | 590 | 400 |
| 150 | 350 | 172 | 37o30' | 152 | 607 | 400 | 150 | 611 | 450 | 145 | 611 | 450 |
| 200 | 400 | 223 | 37o30' | 200 | 740 | 450 | 198 | 745 | 550 | 190 | 747 | 550 |
| 250 | 450 | 278 | 37o30' | 252 | 863 | 550 | 246 | 867 | 650 | 236 | 869 | 650 |
| 300 | 500 | 330 | 37o30' | 302 | 1008 | 650 | 294 | 1008 | 750 | 282 | 1013 | 750 |
| 350 | 550 | 382 | 37o30' | 350 | 1142 | 750 | 342 | 1148 | 800 | 334 | 1148 | 850 |
| 400 | 650 | 432 | 37o30' | 397 | 1527 | 850 | 387 | 1531 | 900 | 377 | 1533 | 950 |
