PZ41H-16C Slage discharge gate valve

PZ41H-16C Slage discharge gate valvePZ41H-16C Slage discharge gate valve
PZ41H-16C Slage discharge gate valve

PZ41H-16C Slage discharge gate valve Product introduction

PZ41H-16C Slage discharge gate valve

PZ41H-16C Slage discharge gate valve Main part material

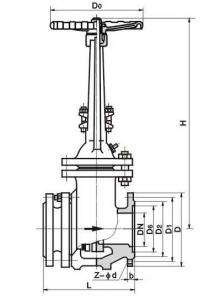

PZ41H-16C Slage discharge gate valve Main dimension

PN DN Dimension
L D D1 D2 D6 b f Z-d H D0
1.6MPa 50 250 160 125 100 - 16 3 4-18 335 250
80 280 195 160 135 - 20 3 8-18 510 280
100 300 215 180 155 - 20 3 8-18 685 300
150 350 280 240 210 - 24 3 8-23 790 300
200 400 335 295 265 - 26 3 12-23 885 350
250 450 405 355 320 - 30 3 12-25 1015 400
300 500 460 410 375 - 30 3 12-25 1190 450
350 550 520 470 435 - 34 4 16-25 1350 500
400 600 580 525 485 - 36 4 16-25 1460 500
450 650 640 585 545 - 40 4 20-30 1620 550
500 700 705 650 608 - 44 4 20-34 1800 550
2.5MPa 50 250 160 125 100 - 20 3 4-18 335 250
80 280 195 160 135 - 22 3 8-18 510 280
100 300 230 190 160 - 24 3 8-23 685 300
150 350 300 250 218 - 30 3 8-25 790 300
200 400 360 310 278 - 34 3 12-25 885 350
250 450 425 370 332 - 36 3 12-30 1015 400
300 500 485 430 390 - 40 4 16-30 1190 450
350 550 550 490 448 - 44 4 16-34 1350 500
400 600 610 550 505 - 48 4 16-34 1460 500
450 650 660 600 555 - 50 4 20-34 1620 550
500 700 730 660 610 - 52 4 20-41 1800 550
4.0MPa 50 250 160 125 100 88 20 3 4-18 340 250
80 310 195 160 135 121 22 3 8-18 508 300
100 350 230 190 160 150 24 3 8-23 680 300
150 450 300 250 218 204 30 3 8-25 800 400
200 550 375 320 282 260 38 3 12-30 875 500
250 650 445 385 345 313 42 3 12-34 1010 500
300 750 510 450 408 364 46 4 16-34 1180 550
350 850 570 510 465 422 52 4 16-34 1145 600
400 950 655 585 535 474 58 4 16-41 1280 600
450 1050 680 610 560 524 60 4 20-41 1415 700
500 1150 755 670 612 576 62 4 20-48 1560 750
6.4MPa 50 250 175 135 105 - 26 3 4-23 340 250
80 310 210 170 140 - 30 3 8-23 508 300
100 350 250 200 168 - 32 3 8-25 680 300
150 450 340 280 240 - 38 3 8-34 800 400
200 550 405 345 300 - 44 3 12-34 875 500
250 650 470 400 352 - 48 3 12-41 1010 500
300 750 530 460 415 - 54 4 16-41 1180 550
350 850 595 525 475 - 60 4 16-41 1145 600
400 950 670 585 525 - 66 4 16-48 1280 600
450 1050 715 630 570 - 70 4 20-48 1415 700
500 1150 800 705 610 - 76 4 20-54 1560 750

PZ41H-16C Slage discharge gate valve Related Products
