DSZ964H Electric water seal gate valve

DSZ964H Electric water seal gate valveDSZ964H Electric water seal gate valve
DSZ964H Electric water seal gate valve

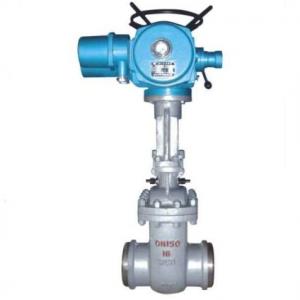

DSZ964H Electric water seal gate valve Product introduction

DSZ964H Electric water seal gate valve

DSZ964H Electric water seal gate valve Main part material

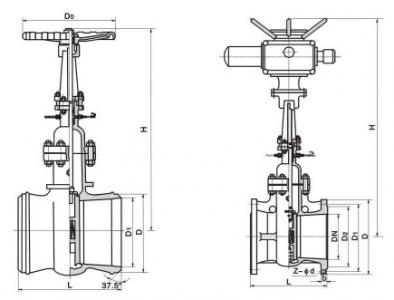

DSZ964H Electric water seal gate valve Main dimension

公称通径
DN/mm

L α H DO PNl.6/MPa PN2.5/MPa
D D1 D D1
50 250 37o30' 334 250 58 50 64 4g
65 270 37o30' 439 250 75 65 82 67
80 280 37o30' 495 300 91 79 95 77
100 300 37o30' 575 350 11O 97 117 101
125 325 37o30' 587 350 136 121 144 126
150 350 37o30' 607 350 163 146 172 158
200 400 37o30' 740 400 223 202 223 202
250 450 37o30' 863 400 278 254 278 254
300 500 37o30' 990 400 330 305 330 305
350 550 37o30' 1137 500 382 352 382 352
400 600 37o30' 1523 500 432 399 432 39g
450 650 37o30' 1618 600 485 451 485 451
500 700 37o30' 1657 600 535 501 535 499
600 800 37o30' 1746 700 636 601 636 599



 DSZ64H-40、64、100 DS/Z64Y-40I、64I、100I Electric water seal gate valve

公称通径
DN/mm
L D α PN4.O/MPa PN6.4/MPa PNlO.0/MPa
D1 H D0 D1 H DO D1 H D0
50 250 64 37o30' 49 345 300 50 350 300 49 350 300
65 270 83 37o30' 67 441 300 66 447 300 64 447 300
80 280 96 37o30' 79 495 350 77 499 350 75 499 350
100 300 117 37o30' 101 575 350 99 582 400 87 582 400
125 325 144 37o30' 126 587 400 129 590 400 125 590 400
150 350 172 37o30' 152 607 400 150 611 450 145 611 450
200 400 223 37o30' 200 740 450 198 745 550 190 747 550
250 450 278 37o30' 252 863 550 246 867 650 236 869 650
300 500 330 37o30' 302 1008 650 294 1008 750 282 1013 750
350 550 382 37o30' 350 1142 750 342 1148 800 334 1148 850
400 650 432 37o30' 397 1527 850 387 1531 900 377 1533 950
