Z43F Carbon steel flat gate valve

Z43F Carbon steel flat gate valveZ43F Carbon steel flat gate valve
Z43F Carbon steel flat gate valve

Z43F Carbon steel flat gate valve Product introduction

Z43F Carbon steel flat gate valve

Z43F Carbon steel flat gate valve Technical parameters


Z43F Carbon steel flat gate valve Main part material

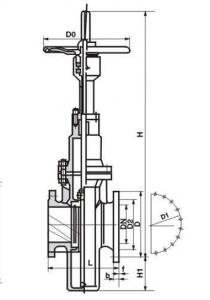

Z43F Carbon steel flat gate valve Main dimension

1.6MPa DN L D D1 D2 Do f b H H1 n-Φd

RF
Z43F-16C Carbon steel flat gate valve

50 178 160 125 100 250 3 16 584 80 4-Φ18
65 190 180 145 120 250 3 18 634 95 4-Φ18
80 203 195 160 135 250 3 20 688 100 8-Φ18
100 229 215 181 155 300 3 20 863 114 8-Φ18
125 254 245 210 185 350 3 22 940 132 8-Φ18
150 267 280 240 210 350 3 24 1030 150 8-Φ23
200 292 335 295 265 350 3 26 1277 168 12-Φ23
250 330 405 355 320 400 3 30 1491 203 12-Φ25
300 356 460 410 375 450 4 30 1701 237 12-Φ25
350 381 520 470 435 500 4 34 1875 265 16-Φ30
400 406 580 525 485 305 4 36 2180 300 16-Φ30
450 432 640 585 545 305 4 40 2440 325 20-Φ34
500 457 705 650 608 305 4 44 2860 360 20-Φ41
600 508 840 770 718 305 5 48 3450 425 20-Φ41
700 610 910 840 788 305 5 50 3960 460 24-Φ41
800 660 1020 950 898 305 5 52 4550 512 24-Φ41
900 711 1120 1050 998 250 5 54 5250 565 28-Φ48
1000 811 1250 1170 1110 250 5 56 5870 630 28-Φ18
2.5MPa 50 178 160 125 100 250 3 20 584 80 4-Φ18

RF
Z43F-25C Carbon steel flat gate valve

65 190 180 145 120 300 3 22 634 95 8-Φ18
80 203 195 160 135 350 3 22, 388 100 8-Φ18
100 229 230 190 160 350 3 24 863 114 8-Φ23
125 254 270 220 188, 350 3 28 940 132 8-Φ25
150 267 300 250 218 400 3 30 1030 150 8-Φ25
200 292 360 310 278 450 3 34 1277 168 12-Φ25
250 330 425 370 332 500 3 36 1491 203 12-Φ30
300 356 485 430 390 305 4 40 1701 237 16-Φ30
350 381 550 490 448 305 4 44 1875 265 16-Φ34
400 406 610 550 505 305 4 48 2180 300 16-Φ34
450 432 660 600 555 305 4 50 2440 325 20-Φ34
500 457 730 660 610 305 4 52 2860 360 20-Φ41
600 508 840 770 718 305 5 56 3450 425 20-Φ41
700 610 955 875 815 305 5 60 3960 460 24-Φ48
800 660 1070 990 930 305 5 64 4550 512 24-Φ48
900 711 1180 1090 1025 - 5 66 5250 595 28-Φ54
1000 811 1305 1210 1140 - 5 68 5870 660 28-Φ48

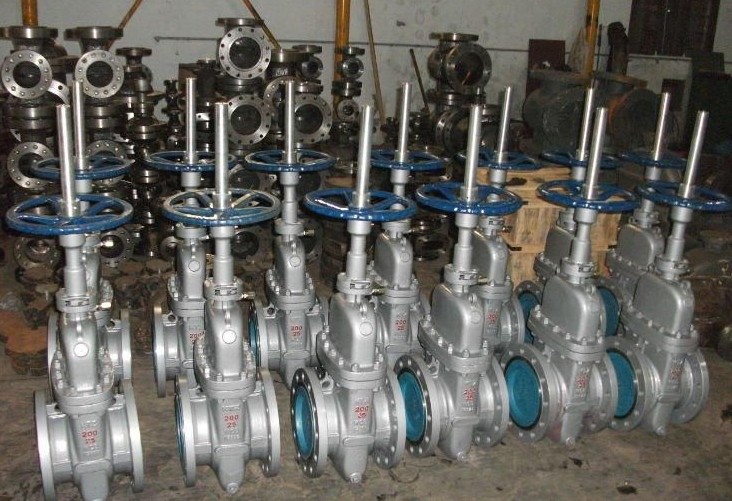

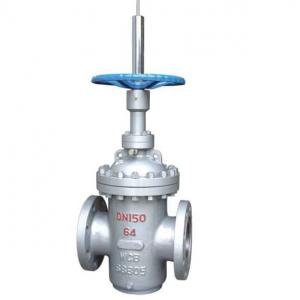

Z43F Carbon steel flat gate valve Product show
