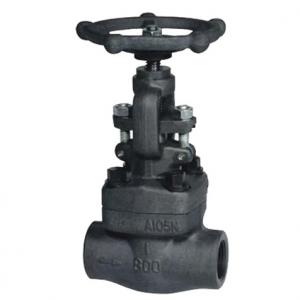

Z11H Z11Y A105 Gate valve Product introduction

Z11H Z11Y A105 Gate valve

Z11H Z11Y A105 Gate valve Technical parameters



Z11H Z11Y A105 Gate valve Main part material

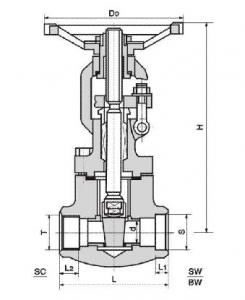

Z11H Z11Y A105 Gate valve Main dimension

DN Z11H Z11Y A105 Gate valve Dimension
L d S L1 T L2 H D0
 Z11H-16C   Z11H-25   Z11H-40 Z11H-100   Z11Y-100   Z11H Z11Y A105 Gate valve
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 120 28 43 14 1? 21 201 166
40 135 36 49 15 1? 21 227 180
50 155 45 61 16 2 25 253 180
Z11H-64  Z11Y-64   Z11H Z11Y A105 Gate valve
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1? 21 212 180
40 150 36 49 15 1? 21 231 180
50 155 45 61 16 2 25 253 180
Z11H-100  Z11Y-100   Z11H Z11Y A105 Gate valve
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1? 21 212 180
40 150 36 49 15 1? 21 231 180
50 155 45 61 16 2 25 253 180

Z11H Z11Y A105 Gate valve Related Products

Previous:Z61H Z61Y A105 gate valve

Next:Z41H A105 Flanged gate valve
