Z61H Z61Y A105 gate valve

Z61H Z61Y A105 gate valveZ61H Z61Y A105 gate valve
Z61H Z61Y A105 gate valve

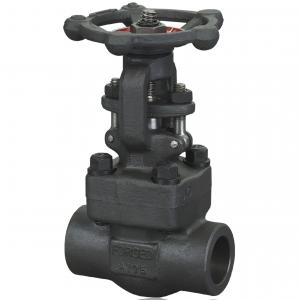

Z61H Z61Y A105 gate valve Product introduction

Z61H Z61Y A105 gate valve

Z61H Z61Y A105 gate valve Main part material

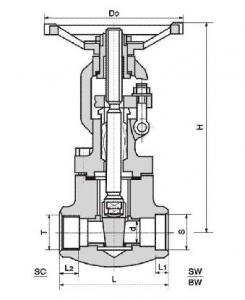

Z61H Z61Y A105 gate valve Main dimension



DN Z61H Z61Y A105 gate valve  Dimension
L d S L1 T L2 H D0
 Z61H-16C   Z61H-25   Z61H-40
15 90 13 22.5 10 1 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 120 28 43 14 1 1/4 21 201 166
40 135 36 49 15 1 1/2 21 227 180
50 155 45 61 16 2 25 253 180
 Z61H-64   Z61Y-64
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1 1/4 21 212 180
40 150 36 49 15 1 1/2 21 231 180
50 155 45 61 16 2 25 253 180
Z61H-100  Z61Y-100
15 90 13 22.5 10 1/2 15 151 118
20 100 18 28.5 11 3/4 17 182 130
25 120 23 34.5 12 1 19 197 150
32 130 28 43 14 1 1/4 21 212 180
40 150 36 49 15 1 1/2 21 231 180
50 155 45 61 16 2 25 253 180

Z61H Z61Y A105 gate valve Product order instruction




Z61H Z61Y A105 gate valve Related Products

Previous:Z641H Pneumatic actuator gate valve

Next:Z11H Z11Y A105 Gate valve
