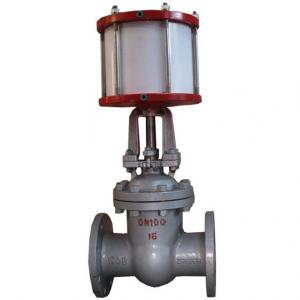

Z641H Pneumatic actuator gate valve

Z641H Pneumatic actuator gate valveZ641H Pneumatic actuator gate valve
Z641H Pneumatic actuator gate valve

Z641H Pneumatic actuator gate valve Product introduction

Z641H Pneumatic actuator gate valve

Z641H Pneumatic actuator gate valve Main part material

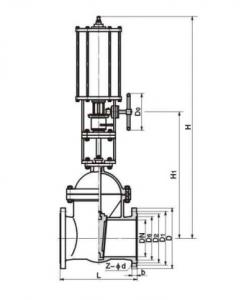

Z641H Pneumatic actuator gate valve Main dimension

DN L D D1 D2 b z×Φd H H1 Weight/kg
100 230 215 180 155 22 8×Φ18 770 880 130
150 280 280 240 210 24 8×Φ23 940 1100 200
200 330 335 295 265 26 8×Φ23 1130 1350 260
250 380 390 350 320 28 12×Φ23 1290 1555 290
300 420 440 400 368 28 12×Φ23 1460 1780 380
350 450 500 460 428 30 16×Φ23 1580 1950 600
400 480 565 515 482 32 16×Φ25 1790 2210 900
450 510 615 565 532 32 20×Φ25 1940 2415 1150
500 540 670 620 585 34 20×Φ25 2155 2680 1500
600 600 780 725 685 36 20×Φ30 2355 2880 1800
700 660 890 840 800 40 24×Φ30 2810 3560 2500
