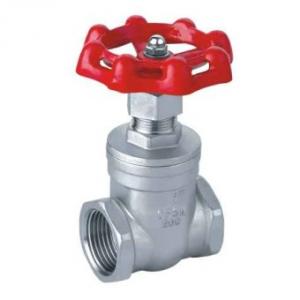

Z15W Female screw gate valve Product introduction
Z15W Female screw gate valve Technical parameters
Z15W Female screw gate valve Main part material

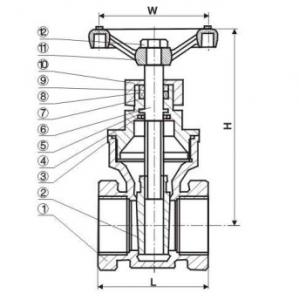

Z15W Female screw gate valve Main dimension
| DN | Rc/in | L | B | H | D0 |
|---|---|---|---|---|---|
| 15 | Rc1/2 | 56.5 | 15 | 94 | 70 |
| 20 | Rc3/4 | 60 | 20 | 102 | 70 |
| 25 | Rc1 | 68 | 25 | 114 | 80 |
| 32 | Rc1¼ | 75.5 | 32 | 124 | 80 |
| 40 | Rc1½ | 80 | 40 | 152.5 | 100 |
| 50 | Rc2 | 90.5 | 50 | 169.5 | 100 |
Z15W Female screw gate valve Related Products
