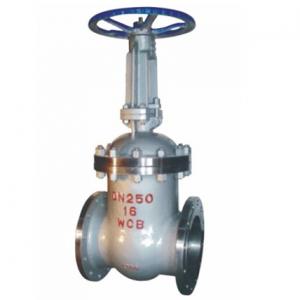

Flange wedge gate valve

Flange wedge gate valve Product introduction

Flange wedge gate valve manufacturer, factory and supplier. Flange wedge gate valve generally used to connect or disconnect the piping in the media, it shut down parts(gate)in the vertical plane centerline of the valve channel to give a lift moving. Flange wedge gate valve can not be used as a regulating the flow of media.

Flange wedge gate valve Specification
Suitable medium: water, oil, steam and non-corrosive media
Working temperature: ≤450℃
Nominal pressure: PN16
Main Parts material
Body, bonnet: carbon steel, stainless steel
Disc: stainless steel, stainless steel + alloy
Stem: stainless steel
Seat: stainless steel carbon steel alloy

Flange wedge gate valve Technical parameters

Flange wedge gate valve Main part material

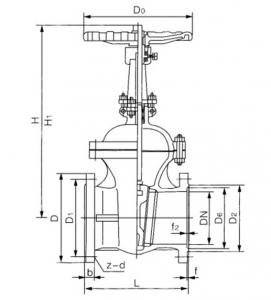

Flange wedge gate valve Main dimension

Flange wedge gate valve -1.6MPa

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
L	mm	130	150	160	180	200	250	265	280	300	325	350	400	450	500	550	600	650	700	800
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780	2050	2181	2599
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600	720	720	720

Flange wedge gate valve-2.5MPa-4.0MPa

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	mm	130	150	160	180	200	250	280	310	350	400	450	550	650	750	850	950
H	mm	175	180	210	210	350	358	373	435	500	614	674	818	1225	1415	1630	1780
W	mm	180	180	200	200	200	240	240	280	320	360	360	400	450	500	500	600

Flange wedge gate valve-6.4MPa

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350	400
L	mm	170	190	210	230	240	250	280	320	350	400	450	550	650	750	850	950
H	mm	175	180	210	230	350	359	373	435	500	614	674	818	970	1145	1280	1450
W	mm	120	120	140	160	200	240	280	320	360	400	400	450	560	640	800	800

Flange wedge gate valve-10.0MPa

Size	DN	15	20	25	32	40	50	65	80	100	125	150	200	250
L	mm	170	190	210	230	240	250	280	310	350	400	450	550	650
H	mm	175	180	210	230	350	359	373	435	500	614	674	818	970
W	mm	120	120	160	180	240	280	320	360	400	450	560	640	720

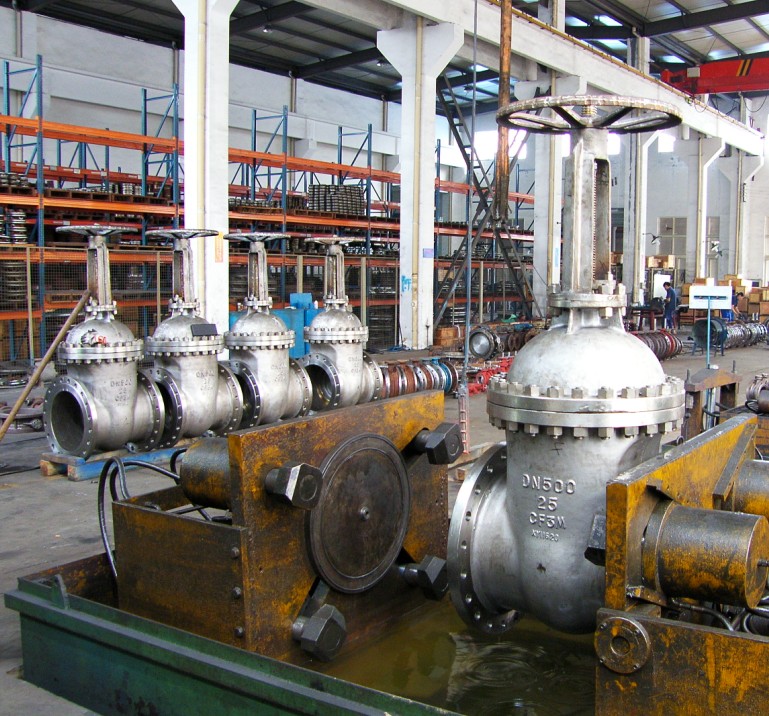

Flange wedge gate valve Product show
