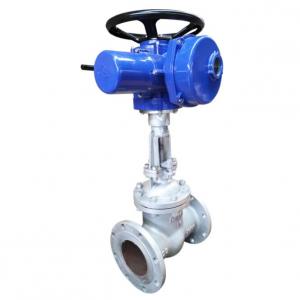

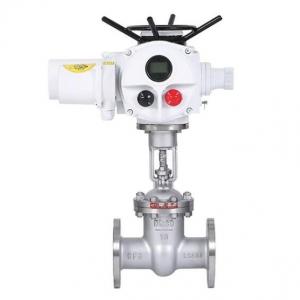

Multi-Turn Motorized Control Gate Valve

Multi-Turn Motorized Control Gate ValveMulti-Turn Motorized Control Gate Valve
Multi-Turn Motorized Control Gate Valve

Multi-Turn Motorized Control Gate Valve Product introduction

 Multi-Turn Motorized Control Gate Valve Manufacturer, Factory, Company and Supplier in China. Multi-Turn Motorized Control Gate Valve is also called electric gate valve, motorized actuator gate valve, which is an ordinary gate valve that operated by an Motorized actuator. Multi-Turn Motorized Control Gate Valve is widely used for various applications like a power plant, shipyard, oil and gas, wastewater treatment, paper and pulp,etc.


Multi-Turn Motorized Control Gate Valve speicification:

Pressure 16bar, 25bar, 40 bar, 64bar, Class 150, Class 300, 10K, 20K
Temperature -22°F to 356°F
Medium Water, Oil, Gas, Pulp, Mud, etc
Material Cast steel or Stainless Steel 304/316/316L
Connection Flanged (ANSI, JIS, DIN)
Size range DN15-DN1200


Multi-Turn Motorized Control Gate Valve feature:
1. A one-stop valve solution for start and stop the flow rate
2. Weather-proof aluminum alloy multi-turn actuator for outdoor use
3. Multi-turn actuator to help to control locally or remotely
4. Offering multiple options of Fieldbus to help to connect with your control system with a right Fieldbus
5. Available in WCB and stainless steel valve material for your choice


Multi-Turn Motorized Control Gate Valve electric actuator parameter:

Power supply conventional: single phase 220v, three phase 380v
special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Relative humidity: 95% (at 25 ° C)
Protection level Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system short time 10 minutes (15-60 minutes for special order)

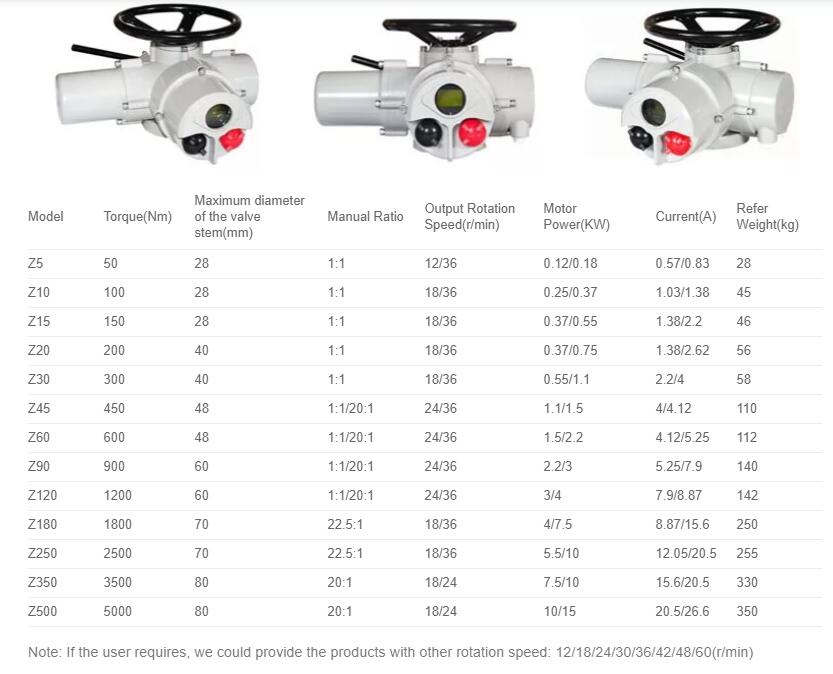

Multi-Turn Motorized Control Gate Valve Technical parameters

Multi-Turn Motorized Control Gate Valve

Multi-Turn Motorized Control Gate Valve Related Products

Previous:Explosion Proof Motorized Gate Valve

Next:Pressure seal bonnet gate valve manufacturer
