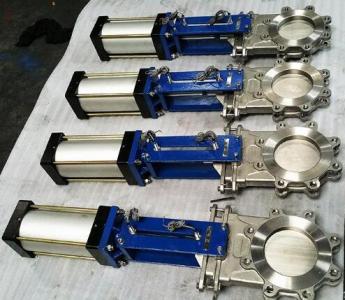

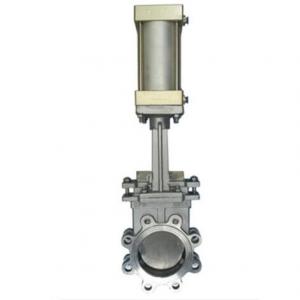

PZ673H Pneumatic knife gate valve

PZ673H Pneumatic knife gate valvePZ673H Pneumatic knife gate valve
PZ673H Pneumatic knife gate valve

PZ673H Pneumatic knife gate valve Product introduction

PZ673H pneumatic knife gate valve is a complicated automatic control instrument, which consists of a variety of pneumatic actuator and knife gate valve body. PZ673H pneumatic knife gate valve is used for occasions requiring fast cutting or opening.

PZ673H pneumatic knife gate valve actuator function:
Double action: two position control for valve opening and closing.
Single action: (spring reset): Valves open or close automatically when electrical and electrical circuits are cut off or malfunctioned.

PZ673H pneumatic knife gate valve Optional Accessories
1.Single or double control solenoid valves (with 24V, 220V and other voltage selectable, if necessary, explosion-proof solenoid valve).
2.Proximity switch
3.Air filter (including pressure reducing valve, filter, oil mist device).

PZ673H pneumatic knife gate valve dimensions (mm) PN10

MPa
DN
L
D
D1
D2
H
N-M
D0
W(Kg)
Valve
PN10
50
43
160
125
100
285
4-M16
180
8
65
46
180
145
120
298
4-M16
180
10
80
46
195
160
135
315
4-M16
220
12
100
52
215
180
155
365
8-M16
220
14
125
56
245
210
185
400
8-M16
230
22
150
56
280
240
210
475
8-M20
280
29
200
60
335
295
265
540
8-M20
360
38
250
68
390
350
320
630
12-M20
360
66
300
78
440
400
368
780
12-M20
400
100
350
78
500
460
428
885
16-M20
400
119
400
102
565
515
482
990
16-M22
400
195
450
114
615
565
532
1100
20-M22
530
285
500
127
670
620
585
1200
20-M22
530
389
600
154
780
725
685
1450
20-M27
600
529
700
165
895
840
800
1700
24-M27
600
790
800
190
1010
950
898
2000
24-M30
680
850
900
203
1110
1050
1005
2300
28-M30
680
900
1000
216
1220
1160
1115
2500
28-M30
700
1050
1200
254
1450
1380
1325
2800
32-M36
800
1300
