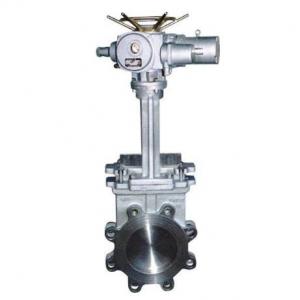

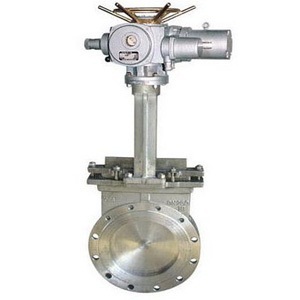

PZ973H PZ973F Electric knife gate valve

PZ973H PZ973F Electric knife gate valvePZ973H PZ973F Electric knife gate valve
PZ973H PZ973F Electric knife gate valve

PZ973H PZ973F Electric knife gate valve Product introduction

 PZ973H PZ973F Electric knife gate valve electric actuator part uses multi-rotating electric device to drive and control the valve opening and closing. Operators can control the valve from a long distance in the control room or operate it manually on the spot. They can also cooperate with the computer to realize automatic control. PZ973H PZ973F Electric knife gate valve is widely used in drainage, heating, power plants, chemical, food, paper, pharmaceutical, coal, mining and other projects, to meet the requirements of modern industrial and agricultural automation.


PZ973H PZ973F Electric knife gate valve Electric actuator parameters

Power supply: AC380V, 50HZ.

Standard type: Standard type products with dust-proof, rain-proof shell protection, protection grade IP65, can be directly used in the outdoor.

Waterproof: the product has a protective level of dust and water immersion (IP67).

Explosion proof type (EX): explosion-proof and so on are D II BT4/D II CT4 (without acetylene).

Ambient temperature: -20 C ~40 C

Optional: equipped with electrical controller.


PZ973H PZ973F Electric knife gate valve dimension

PN
DN
L
D1
D2
H
D0
L0
L1
L2
N-Φ
Actuator
type
1.0MPa
50
43
90
110
600
125
215
318
197
4-M12
DZ10
65
46
110
130
670
125
215
318
197
4-M12
DZ10
80
46
125
150
680
125
215
318
197
4-M16
DZ10
100
52
145
170
700
125
215
318
197
4-M16
DZ10
125
56
175
200
720
125
215
318
197
8-M16
DZ10
150
56
200
225
790
125
215
318
197
8-M16
DZ10
200
60
255
280
850
125
215
363
197
8-M16
DZ15
250
68
310
335
1100
125
215
363
197
12-M16
DZ20
300
78
362
395
1180
125
215
363
197
12-M20
DZ20
350
78
412
445
1280
125
215
363
197
12-M20
DZ30
400
102
462
495
1460
125
215
363
197
16-M20
DZ45
450
114
518
550
1600
235
240
437
277
16-M20
DZ45
500
127
568
600
1800
235
240
437
277
16-M20
DZ45
600
154
670
705
2100
235
240
437
277
20-M22
DZ60
700
165
775
810
2300
260
274
526
283
24-M22
DZ90
800
190
880
920
2500
260
274
526
283
24-M27
DZ120
900
203
980
1020
2700
295
319
554
309
24-M27
DZ180
1000
216
1080
1120
2900
295
319
554
309
28-M27
DZ250
1200
254
1295
1340
3400
295
319
554
309
32-M30
DZ250
