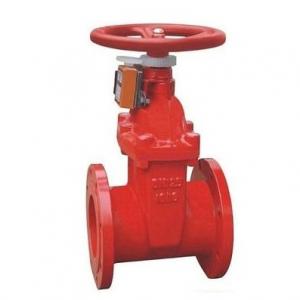

Signal gate valve

Signal gate valveSignal gate valve
Signal gate valve

Signal gate valve Product introduction

Signal gate valve

Signal gate valve Technical parameters

公称压力:1.0~2.5MPa

工作温度:0~80℃

法兰标准:GB/T 17241.6 GB9113

公称通经:50~400mm

适用介质:水、油、气等

试验标准:GB13927 AP1598

Signal gate valve Main part material

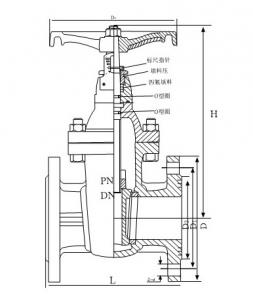

Signal gate valve Main dimension

DN

50

65

80

100

125

150

200

250

300

350

400

L

178

190

203

229

254

267

292

330

356

381

406

Hmin(全开)

322

332

350

420

581

581

736

882

1009

1300

1380

Hmax(全开)

374

398

429

524

721

736

942

1031

1117

1655

1805
