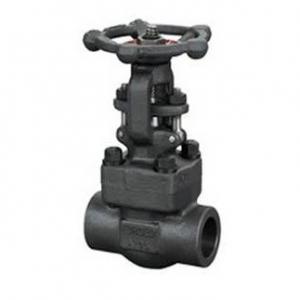

Z61H Z61Y Socket welded gate valve

Z61H Z61Y Socket welded gate valveZ61H Z61Y Socket welded gate valve
Z61H Z61Y Socket welded gate valve

Z61H Z61Y Socket welded gate valve Product introduction

Z61H Z61Y Socket welded gate valve

Z61H Z61Y Socket welded gate valve Technical parameters


Z61H Z61Y Socket welded gate valve Main part material

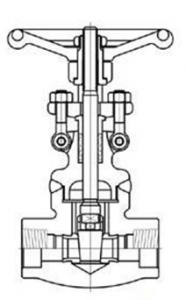

Z61H Z61Y Socket welded gate valve Main dimension

DN L D D1 C H H1 D0 kg
15 90 36 22.5 10 230 250 140 3.9
20 110 44 28.5 11 260 288 160 5.6
25 120 52 34.5 12 280 310 160 8
32 130 62 43 14 312 350 200 12
40 150 70 49 15 350 395 240 16
50 170 90 61 16 382 440 280 22
