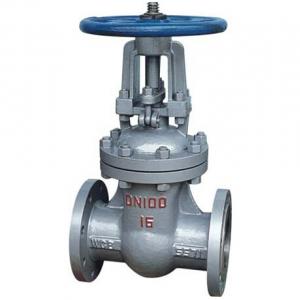

Z41H-16C gate valve

Z41H-16C gate valveZ41H-16C gate valve
Z41H-16C gate valve

Z41H-16C gate valve Product introduction

 Z41H-16C gate valve is a valve that opens by lifting a round or rectangular gate/wedge out of the path of the fluid. The distinct feature of a gate valve is the sealing surfaces between the gate and seats are planar, so gate valves are often used when a straight-line flow of fluid and minimum restriction is desired. Z41H-16C gate valvefaces can form a wedge shape or they can be parallel. On opening the Z41H-16C gate valve, the flow path is enlarged in a highly nonlinear manner with respect to percent of opening. This means that flow rate does not change evenly with stem travel. Also, a partially open gate disk tends to vibrate from the fluid flow. Most of the flow change occurs near shutoff with a relatively high fluid velocity causing disk and seat wear and eventual leakage if used to regulate flow. Typical Z41H-16C gate valve are designed to be fully opened or closed.


Z41H-16C gate valve Specification
Suitable medium: water, oil, steam and non-corrosive media
Working temperature: ≤425℃
Nominal pressure: PN16
Connection: Russian standard 12815-80
Sealing: RussianD9544-93
Main Parts material
Body, bonnet, gland: carbon steel 20#
Disc, Disc seal: 2Cr13 or stainless steel304
Stem: 2Cr13
