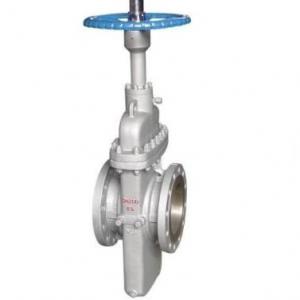

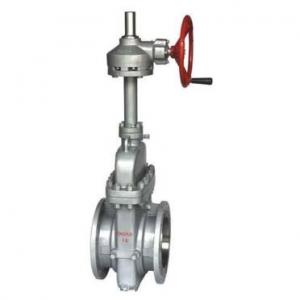

Z43WF Natural gas slab gate valve

Z43WF Natural gas slab gate valveZ43WF Natural gas slab gate valve
Z43WF Natural gas slab gate valve

Z43WF Natural gas slab gate valve Product introduction

 Z43WF Natural gas slab gate valve,China slab gate valve manufacturer,factory,company and supplier,Z43WF Natural gas slab gate valve structure having a slab gate and a pair of opposed seat assemblies on opposite faces of the slab gate. A generally U-shaped spacer member of substantially the same thickness as the slab gate is loosely positioned between the opposed seat assemblies outwardly of the slab gate to maintain a predetermined minimum spacing between the seat assemblies. The U-shaped spacer member has a smaller thickness portion thereof in its center section to provide flexibility for permitting alignment of the spacer member upon canting or cocking of the seat assemblies.


Z43WF Natural gas slab gate valve Specifications:

Size:

1/2" - 24"

Pressure:

ANSI 150LB - 1500LB

Material:

WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, CF8, CF8M, CF3, CF3M, CF8C, CN7M, etc

Type:

Rising Stem, BB, FB, OS&Y

Operation:

Hand Wheel, Gear, Electricty, etc


Z43WF Natural gas slab gate valve Standard compliance:

Design And Manufacture: API 600, API 6D, BS1414

Face To Face (End To End): ANSI B16.10, API 6D

Flanged Connection:  ANSI B16.5

Butt Welded End: ANSI B16.25

Test And Inspection: API 598, API 6D



Z43WF Natural gas slab gate valve Main structural features:

Full Port Design, OS&Y, Outside and Screw, Bolted bonnet, Back Seal Structure
Flexible wedge, Fully guided, Choice of Solid or Split wedge
Renewable or welded seat
Extended stem design for low temperature
Flanged or Butt-welding ends
