Z962Y Motorized Gate valve Product introduction

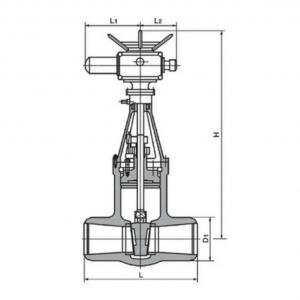

Z962Y Motorized Gate valve is conposed high pressure welded end gate valve and intelligent electric actuator.Z962Y Motorized Gate valve is a kind of high temperature and high pressure power station gate valve. Z962Y Motorized Gate valve application scope: Pound-scale power station gate valve is suitable for cutting off or connecting medium in pipeline of Class1500-3500Lb, oil, chemical, thermal power station and other working conditions with operating temperature of-29-570 C. Z962Y Motorized Gate valve is suitable medium is water, oil, heat conducting oil, steam, etc. The sealing surface of the gate and the valve seat is made of Stellite cobalt-based hardfacing, which has good wear resistance, high temperature resistance, corrosion resistance and scratch resistance.
General Characteristics of Z962Y Motorized Gate valve
Drive Mode: Electric operation. The valve is controlled to open and close by driving the reducer mechanism through a motor.
Structural type: Usually, it adopts wedge-shaped double gate plates or single gate plate design to ensure reliable sealing performance.
Material selection: The alloy steel or other special steel with high temperature and high pressure resistance is adopted for manufacturing to adapt to the harsh working environment.
Connection method: Flange connection, in line with relevant industrial standards.
Application fields: Primarily used in boiler feedwater systems and steam conveying pipelines in the power industry, etc.
Specific model differences of Z962Y Motorized Gate valve
Z962Y-P54 100V
The nominal pressure rating: P54 100V indicates that this valve is suitable for applications where the working pressure is approximately 10 MPa (approximately equal to 100 bar).
Temperature range: Such valves are usually capable of withstanding a working temperature of up to 540°C.
Applicable medium: Suitable for fluids under high temperature and high pressure steam and other similar conditions.
Z962Y-P54 140V
Nominal pressure rating: P54 140V indicates that the valve can be applied to higher pressure, approximately 14 MPa (about equal to 140 bar).
Temperature range: It can also handle media up to around 540°C.
Usage scenario: More applicable in power generation units with supercritical or subcritical parameters.
Z962Y-P54 170V
The nominal pressure rating of P54 170V indicates that the valve is designed for a very high working pressure, reaching approximately 17 MPa (approximately equal to 170 bar).
Temperature range: Similar to the previous two, it can cope with temperature conditions up to 540°C or even higher.
Special application: Extremely suitable for ultra-supercritical power generation units and other applications requiring extremely high pressure conditions.
