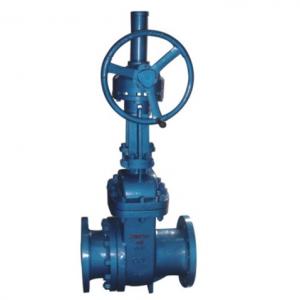

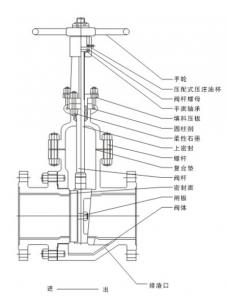

NPZ41 Slag discharge gate valve Product introduction
NPZ41 Slag discharge gate valve Technical parameters
NPZ41 Slag discharge gate valve Main dimension
| PN | DN | Dimension | Outline | ||||||||||
| (MPa) | (mm) | L | D | D1 | D2 | D6 | b | f | fi | Z-φd | Do | H | (kg) |
| 1.6 | 50 | 250 | 165 | 125 | 102 | 20 | 3 | 4-φ18 | 200 | 335 | 60 | ||
| 80 | 280 | 200 | 160 | 133 | 20 | 3 | 8-φ18 | 250 | 510 | 78 | |||
| 100 | 300 | 220 | 180 | 158 | 22 | 3 | 8-φ18 | 320 | 685 | 96 | |||
| 150 | 350 | 285 | 240 | 212 | 24 | 3 | 8-φ22 | 320 | 790 | 158 | |||
| 200 | 400 | 340 | 295 | 268 | 24 | 3 | 12-φ22 | 400 | 885 | 222 | |||
| 250 | 450 | 405 | 355 | 320 | 26 | 3 | 12-φ26 | 400 | 1015 | 289 | |||
| 300 | 500 | 460 | 410 | 370 | 28 | 4 | 12-φ26 | 500 | 1190 | 365 | |||
| 350 | 550 | 520 | 470 | 430 | 30 | 4 | 16-φ26 | 500 | 1350 | 558 | |||
| 400 | 600 | 580 | 525 | 482 | 32 | d | 16-φ30 | 650 | 1460 | 850 | |||
| 450 | 650 | 640 | 585 | 532 | 34 | 4 | 20-φ30 | 650 | 1620 | 1164 | |||
| 500 | 700 | 715 | 650 | 585 | 36 | 4 | 20-φ33 | 650 | 1800 | 1482 | |||
| 600 | 800 | 840 | 770 | 720 | 38 | 5 | 20-φ36 | 720 | 2095 | 2160 | |||
NPZ41 Slag discharge gate valve Related Products
