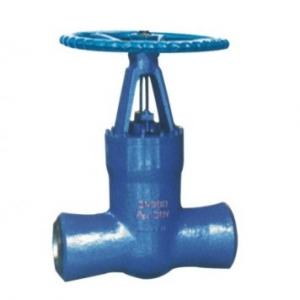

Z61Y Butt weld high pressure gate valve Product introduction
Z61Y Butt weld high pressure gate valve Technical parameters
Z61Y Butt weld high pressure gate valve Main part material

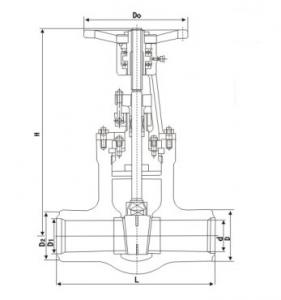

Z61Y Butt weld high pressure gate valve Main dimension
| Dimension (mm) | Electric | weight(kg) | |||||
| DN | d | L | H | L1 | L2 | ||
| Z61Y-250 | |||||||
| 100 | 84 | 406 | 1164 | 437 | 277 | DZW45 | 234 |
| 125 | 100 | 483 | 1402 | 437 | 277 | DZW60 | 343 |
| 175 | 158 | 711 | 1650 | 554 | 309 | DZW180 | 638 |
| 225 | 200 | 864 | 1650 | 554 | 309 | DZW180 | 654 |
| 300 | 280 | 1067 | 2106 | 764 | 398 | DZW350 | 1973 |
| Z61Y-320 | |||||||
| 100 | 96 | 533 | 1236 | 437 | 277 | DZW60 | 291 |
| 125 | 118 | 610 | 1302 | 437 | 277 | DZW60 | 315 |
| 150 | 148 | 762 | 1403 | 526 | 283 | DZW90 | 672 |
| 175 | 148 | 762 | 1650 | 554 | 309 | DZW180 | 684 |
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW180 | 696 |
| Z61Y-P54100V | |||||||
| 175 | 148 | 762 | 1650 | 554 | 309 | DZW180 | 683 |
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW180 | 704 |
| 250 | 222 | 1041 | 1795 | 554 | 309 | DZW180 | 1214 |
| 300 | 294 | 1245 | 2080 | 554 | 309 | DZW250 | 2125 |
| Z61Y-P54170V | |||||||
| 125 | 98 | 630 | 1230 | 437 | 277 | DZW60 | 312 |
| 225 | 186 | 1060 | 1680 | 554 | 309 | DZW180 | 1401 |
| 300 | 278 | 1397 | 2265 | 764 | DZW500 | 2834 | |
| 325 | 310 | 1448 | 2265 | 690 | 398 | DZW500 | 2632 |
| 350 | 338 | 1550 | 2536 | 715 | DZWC-4 | 5591 | |
