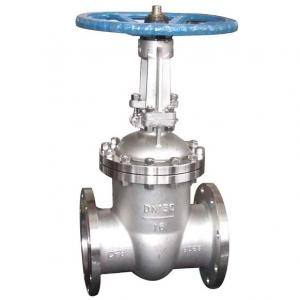

Z41H-10P CF8 CF8M gate valve

Z41H-10P CF8 CF8M gate valve Product introduction

China stainless steel gate valve manufacturer, factory and supplier. Z41H-10P CF8 CF8M gate valve generally used to connect or disconnect the piping in the media, Z41H-10P CF8 CF8M gate valve shut down parts(gate)in the vertical plane centerline of the valve channel to give a lift moving. Z41H-10P CF8 CF8M gate valve can not be used as a regulating the flow of media.

Z41H-10P CF8 CF8M gate valve Specification
Suitable medium: water, oil, steam and non-corrosive media
Working temperature: ≤450℃
Nominal pressure: PN16
Main Parts material
Body, bonnet: carbon steel, stainless steel
Disc: stainless steel, stainless steel + alloy
Stem: stainless steel
Seat: stainless steel carbon steel alloy

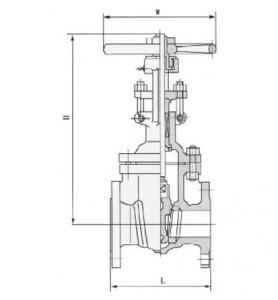

Z41H-10P CF8 CF8M gate valve Main dimension

Model	DN	Dimension(mm)
Model	DN	L	D	D1	D2	b-f	z-Φd	H	D0
Z41W-1.6MPa	15	130	95	65	45	14-2	4-14	170	120
	20	150	105	75	55	14-2	4-14	200	120
	25	160	115	85	65	14-2	4-14	215	140
	32	180	135	100	78	16-2	4-18	260	160
	40	200	145	110	85	16-3	4-18	290	200
	50	250	160	125	100	16-3	4-18	345	220
	65	265	180	145	120	18-3	4-18	360	240
	80	280	195	160	135	20-3	8-18	385	280
	100	300	215	180	155	20-3	8-18	430	300
	125	325	245	210	185	22-3	8-18	520	320
	150	350	280	240	210	24-3	8-23	610	350
	200	400	335	295	265	26-3	12-23	765	400
	250	450	405	355	320	30-3	12-25	895	450
	300	500	460	410	375	30-4	12-25	1145	500
	350	550	520	470	435	34-4	16-25	1200	550
	400	600	580	525	485	36-4	16-30	1400	600
	450	650	640	585	545	40-4	20-30	1500	650
	500	700	705	650	608	44-4	20-34	1630	700
	600	800	840	770	718	48-5	20-41	1830	800

Model	DN	Dimension(mm)
Model	DN	L	D	D1	D2	b-f	z-Φd	H	D0
Z41W-2.5MPa	15	130	95	65	45	16-2	4-14	170	120
	20	150	105	75	55	16-2	4-14	200	120
	25	160	115	85	65	16-2	4-14	215	140
	32	180	135	100	78	18-2	4-18	260	160
	40	200	145	110	85	18-3	4-18	290	200
	50	250	160	125	100	20-3	4-18	345	220
	65	265	180	145	120	22-3	8-18	360	240
	80	280	195	160	135	22-3	8-18	385	280
	100	300	230	190	160	24-3	8-23	430	300
	125	325	270	220	188	28-3	8-25	520	320
	150	350	300	250	218	30-3	8-25	610	350
	200	400	360	310	278	34-3	12-25	765	400
	250	450	425	370	332	36-3	12-30	900	450
	300	500	485	430	390	40-4	16-30	1130	500
	350	550	550	490	448	44-4	16-34	1250	550
	400	600	610	550	505	48-4	16-34	1430	600
	450	650	660	600	555	50-4	20-34	1520	650
	500	700	730	660	610	52-4	20-41	1650	700
	600	800	840	770	718	56-5	20-41	1850	800

Model	DN	Dimension (mm)
Model	DN	L	D	D1	D2	D6	b-f	z-Φd	H
Z41W-4.0MPa	15	130	95	65	45	40	16-2	4-14	170
	20	150	105	75	55	51	16-2	4-14	200
	25	160	115	85	65	58	16-2	4-14	215
	32	180	135	100	78	66	18-2	4-18	260
	40	200	145	110	85	76	18-3	4-18	290
	50	250	160	125	100	88	20-3	4-18	345
	65	280	180	145	120	110	22-3	8-18	360
	80	310	195	160	135	121	22-3	8-18	385
	100	350	230	190	160	150	24-3	8-23	430
	125	400	270	220	188	176	28-3	8-25	530
	150	450	300	250	218	204	30-3	8-25	620
	200	550	375	320	282	260	38-3	12-30	780
	250	650	445	385	345	313	42-3	12-34	900
Z41W-6.4MPa	15	170	105	75	55	41	18-2	4-14	175
	20	190	125	90	68	51	20-2	4-18	200
	25	210	135	100	78	58	22-2	4-18	215
	32	230	150	110	82	66	24-2	4-23	270
	40	240	165	125	95	76	24-3	4-23	300
	50	250	175	135	105	88	26-3	4-23	370
	65	280	200	160	130	110	28-3	8-23	385
	80	310	210	170	140	121	30-3	8-23	400
	100	350	250	200	168	150	32-3	8-25	460
	125	400	295	240	202	176	36-3	8-30	570
	150	450	340	280	240	204	38-3	8-34	660
	200	550	405	345	300	260	44-3	12-34	820
	250	650	470	400	352	313	48-3	12-41	1000

Z41H-10P GATE VALVE DATASHEET NEED CONSULT OUR SELLER.
