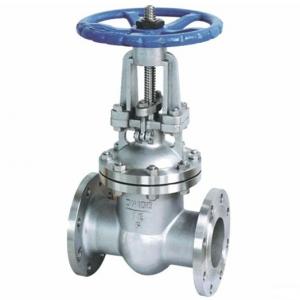

Z41W stainless steel gate valve Product introduction
Z41W stainless steel gate valve generally used to connect or disconnect the piping in the media, it shut down parts(gate)in the vertical plane centerline of the valve channel to give a lift moving. Z41W stainless steel gate valve can not be used as a regulating the flow of media.
Z41W stainless steel gate valve Specification
Suitable medium: water, oil, steam and non-corrosive media
Working temperature: ≤450℃
Nominal pressure: PN16
Main Parts material
Body, bonnet: carbon steel, stainless steel
Disc: stainless steel, stainless steel + alloy
Stem: stainless steel
Seat: stainless steel carbon steel alloy

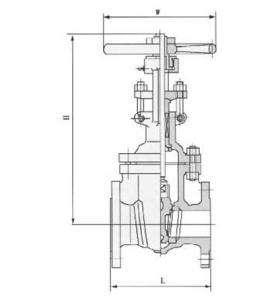

Z41W stainless steel gate valve Main dimension
Model | DN | Dimension(mm) | |||||||
L | D | D1 | D2 | b-f | z-Φd | H | D0 | ||
Z41W-16P 1.6MPa | 15 | 130 | 95 | 65 | 45 | 14-2 | 4-14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 14-2 | 4-14 | 200 | 120 | |
25 | 160 | 115 | 85 | 65 | 14-2 | 4-14 | 215 | 140 | |
32 | 180 | 135 | 100 | 78 | 16-2 | 4-18 | 260 | 160 | |
40 | 200 | 145 | 110 | 85 | 16-3 | 4-18 | 290 | 200 | |
50 | 250 | 160 | 125 | 100 | 16-3 | 4-18 | 345 | 220 | |
65 | 265 | 180 | 145 | 120 | 18-3 | 4-18 | 360 | 240 | |
80 | 280 | 195 | 160 | 135 | 20-3 | 8-18 | 385 | 280 | |
100 | 300 | 215 | 180 | 155 | 20-3 | 8-18 | 430 | 300 | |
125 | 325 | 245 | 210 | 185 | 22-3 | 8-18 | 520 | 320 | |
150 | 350 | 280 | 240 | 210 | 24-3 | 8-23 | 610 | 350 | |
200 | 400 | 335 | 295 | 265 | 26-3 | 12-23 | 765 | 400 | |
250 | 450 | 405 | 355 | 320 | 30-3 | 12-25 | 895 | 450 | |
300 | 500 | 460 | 410 | 375 | 30-4 | 12-25 | 1145 | 500 | |
350 | 550 | 520 | 470 | 435 | 34-4 | 16-25 | 1200 | 550 | |
400 | 600 | 580 | 525 | 485 | 36-4 | 16-30 | 1400 | 600 | |
450 | 650 | 640 | 585 | 545 | 40-4 | 20-30 | 1500 | 650 | |
500 | 700 | 705 | 650 | 608 | 44-4 | 20-34 | 1630 | 700 | |
600 | 800 | 840 | 770 | 718 | 48-5 | 20-41 | 1830 | 800 |
Z41W stainless steel gate valve 2.5MPa
Model | DN | Dimension(mm) | |||||||
L | D | D1 | D2 | b-f | z-Φd | H | D0 | ||
Z41W-25P 2.5MPa | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-14 | 170 | 120 |
20 | 150 | 105 | 75 | 55 | 16-2 | 4-14 | 200 | 120 | |
25 | 160 | 115 | 85 | 65 | 16-2 | 4-14 | 215 | 140 | |
32 | 180 | 135 | 100 | 78 | 18-2 | 4-18 | 260 | 160 | |
40 | 200 | 145 | 110 | 85 | 18-3 | 4-18 | 290 | 200 | |
50 | 250 | 160 | 125 | 100 | 20-3 | 4-18 | 345 | 220 | |
65 | 265 | 180 | 145 | 120 | 22-3 | 8-18 | 360 | 240 | |
80 | 280 | 195 | 160 | 135 | 22-3 | 8-18 | 385 | 280 | |
100 | 300 | 230 | 190 | 160 | 24-3 | 8-23 | 430 | 300 | |
125 | 325 | 270 | 220 | 188 | 28-3 | 8-25 | 520 | 320 | |
150 | 350 | 300 | 250 | 218 | 30-3 | 8-25 | 610 | 350 | |
200 | 400 | 360 | 310 | 278 | 34-3 | 12-25 | 765 | 400 | |
250 | 450 | 425 | 370 | 332 | 36-3 | 12-30 | 900 | 450 | |
300 | 500 | 485 | 430 | 390 | 40-4 | 16-30 | 1130 | 500 | |
350 | 550 | 550 | 490 | 448 | 44-4 | 16-34 | 1250 | 550 | |
400 | 600 | 610 | 550 | 505 | 48-4 | 16-34 | 1430 | 600 | |
450 | 650 | 660 | 600 | 555 | 50-4 | 20-34 | 1520 | 650 | |
500 | 700 | 730 | 660 | 610 | 52-4 | 20-41 | 1650 | 700 | |
600 | 800 | 840 | 770 | 718 | 56-5 | 20-41 | 1850 | 800 |
Model | DN | Dimension(mm) | |||||||
L | D | D1 | D2 | D6 | b-f | z-Φd | H | ||
Z41W-40P 4.0MPa | 15 | 130 | 95 | 65 | 45 | 40 | 16-2 | 4-14 | 170 |
20 | 150 | 105 | 75 | 55 | 51 | 16-2 | 4-14 | 200 | |
25 | 160 | 115 | 85 | 65 | 58 | 16-2 | 4-14 | 215 | |
32 | 180 | 135 | 100 | 78 | 66 | 18-2 | 4-18 | 260 | |
40 | 200 | 145 | 110 | 85 | 76 | 18-3 | 4-18 | 290 | |
50 | 250 | 160 | 125 | 100 | 88 | 20-3 | 4-18 | 345 | |
65 | 280 | 180 | 145 | 120 | 110 | 22-3 | 8-18 | 360 | |
80 | 310 | 195 | 160 | 135 | 121 | 22-3 | 8-18 | 385 | |
100 | 350 | 230 | 190 | 160 | 150 | 24-3 | 8-23 | 430 | |
125 | 400 | 270 | 220 | 188 | 176 | 28-3 | 8-25 | 530 | |
150 | 450 | 300 | 250 | 218 | 204 | 30-3 | 8-25 | 620 | |
200 | 550 | 375 | 320 | 282 | 260 | 38-3 | 12-30 | 780 | |
250 | 650 | 445 | 385 | 345 | 313 | 42-3 | 12-34 | 900 | |
Z41W-64P 6.4MPa | 15 | 170 | 105 | 75 | 55 | 41 | 18-2 | 4-14 | 175 |
20 | 190 | 125 | 90 | 68 | 51 | 20-2 | 4-18 | 200 | |
25 | 210 | 135 | 100 | 78 | 58 | 22-2 | 4-18 | 215 | |
32 | 230 | 150 | 110 | 82 | 66 | 24-2 | 4-23 | 270 | |
40 | 240 | 165 | 125 | 95 | 76 | 24-3 | 4-23 | 300 | |
50 | 250 | 175 | 135 | 105 | 88 | 26-3 | 4-23 | 370 | |
65 | 280 | 200 | 160 | 130 | 110 | 28-3 | 8-23 | 385 | |
80 | 310 | 210 | 170 | 140 | 121 | 30-3 | 8-23 | 400 | |
100 | 350 | 250 | 200 | 168 | 150 | 32-3 | 8-25 | 460 | |
125 | 400 | 295 | 240 | 202 | 176 | 36-3 | 8-30 | 570 | |
150 | 450 | 340 | 280 | 240 | 204 | 38-3 | 8-34 | 660 | |
200 | 550 | 405 | 345 | 300 | 260 | 44-3 | 12-34 | 820 | |
250 | 650 | 470 | 400 | 352 | 313 | 48-3 | 12-41 | 1000 |
